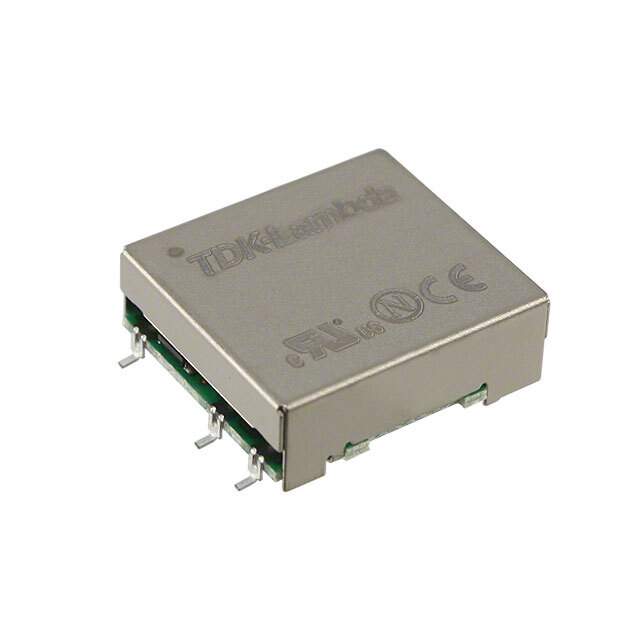

Same model may have multiple batches, images only for reference.

CC6-4805SR-E

Name: CC6-4805SR-E
Brand: TDK-Lambda Americas Inc.
SKU: 1339809
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CC6-4805SR-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 6W / Isolated Module DC DC Converter 1 Output 5V 1.2A 36V - 76V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CC-E (6W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	5V
Current - Output (Max)	1.2A
Power (Watts)	6 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	7-SMD Module
Size / Dimension	0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm)
Control Features	Enable, Active Low
Base Product Number	CC6-4805
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1339809-CC6-4805SR-E
Ultra Librarian 3D Model	Ultra Librarian CC6-4805SR-E CAD Model

Alternative Products

Description

The CC6-4805SR-E is a DC-DC converter that is designed to be mounted on a board.

Power Rating: 6 W
Output Current: 1.2A
Input Voltage Range: 36V to 76V
Output Voltage: 5V
Mounting: Surface mount
Package: 7-SMD module
Temperature Range: -40°C to 85°C
Isolation Voltage: 500 V
Manufacturer: TDK-Lambda Americas Inc.
