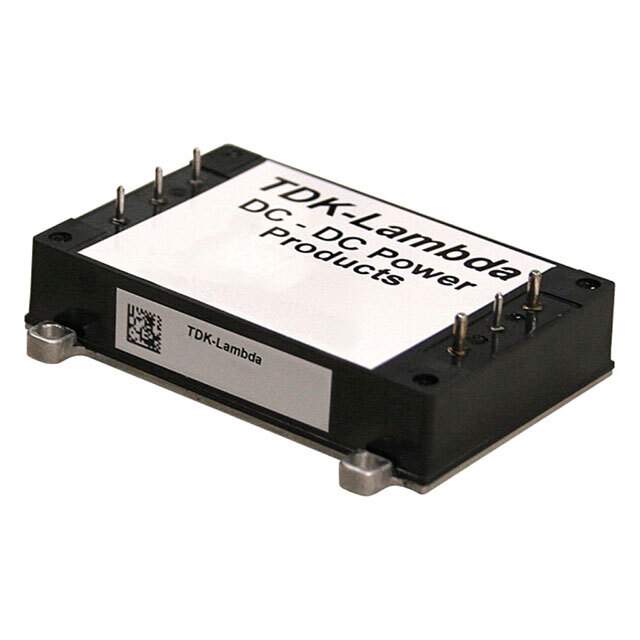

GQA2W010A120V-0P7-R Real Image
Same model may have multiple batches, images only for reference.

GQA2W010A120V-0P7-R

Part No GQA2W010A120V-0P7-R
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 120W / Isolated Module DC DC Converter 1 Output 12V 10A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series GQA120 (120W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 10A
Power (Watts) 120 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 89%
Mounting Type Through Hole
Package / Case Quarter Brick
Size / Dimension 2.39" L x 1.95" W x 0.50" H (60.6mm x 49.5mm x 12.7mm)
Supplier Device Package Quarter Brick
Control Features Enable, Active Low
Approval Agency CE
Base Product Number GQA2W010
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1339759-GQA2W010A120V-0P7-R
Ultra Librarian 3D Model Ultra Librarian GQA2W010A120V-0P7-R CAD Model

Description

The GQA2W010A120V-0P7-R power supply is a high-quality isolated module from TDK-Lambda Americas Inc that is ideal for a wide range of electronic applications.

  • Series: GQA120 (120W)
  • Power Output: 120 W
  • Features: Remote On/Off, OCP, OVP
  • Supplied: Tray
  • Size/Dimension: 2.39" L x 1.95" W x 0.50" H (60.6mm x 49.5mm x 12.7mm)
  • Application: ITE (Commercial)
  • Voltage Isolation: 3 kV
  • Voltage Input: 9V to 36V
  • Voltage Output: 12V
  • Efficiency: 89%
  • Mounting Type: Through Hole
  • Package/Case: Quarter Brick
  • Supplier Device Package: Quarter Brick
  • Operating Temperature: -40°C ~ 105°C
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
  • Base Product Number: GQA2W010
  • Approvals: CE
  • Warning: California Prop 65
