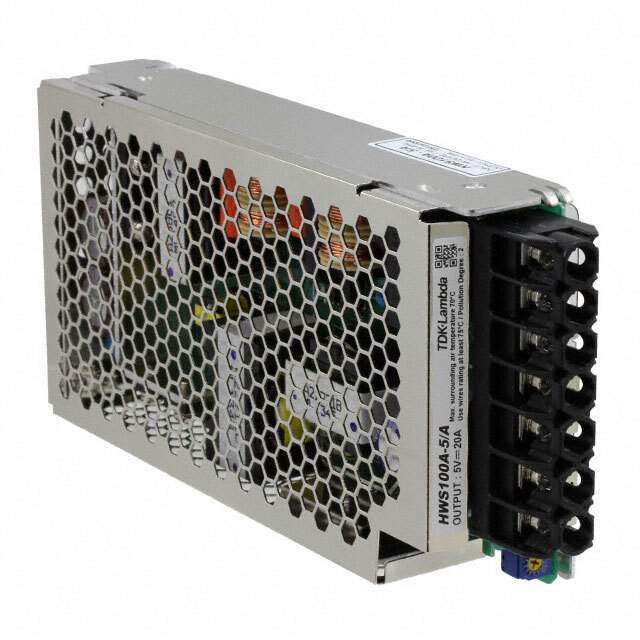

HWS100A-5/HD Real Image
Same model may have multiple batches, images only for reference.

HWS100A-5/HD

Part No HWS100A-5/HD
Manufacturer TDK-Lambda Americas Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 5V 100W / Open Frame, Conformal Coated AC DC Converters 1 Output 5V 85 ~ 265 VAC, 120 ~ 370 VDC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr TDK-Lambda Americas Inc
Series HWS/HD (100W)
Package Bulk
Type Open Frame, Conformal Coated
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC, 120 ~ 370 VDC
Voltage - Output 1 5V
Current - Output 1 20 A
Power (Watts) 100W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 86%
Temperature Range - Operating -10°C ~ 71°C (With Derating)
Features Adjustable Output, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 6.30" L x 3.23" W x 1.10" H (160.0mm x 82.0mm x 28.0mm)
Approval Agency CE
Base Product Number HWS100
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6007
California Prop 65 Warning Information
Win Source Part Number 1351080-HWS100A-5/HD
Ultra Librarian 3D Model Ultra Librarian HWS100A-5/HD CAD Model

Description

The HWS100A-5/HD is an external/internal (off-board) AC DC converter that is designed for ITE (Commercial) applications.

  • Component Type: AC DC Converter
  • Application: ITE (Commercial)
  • Feature: Open Frame, Conformal Coated, Adjustable Output, PFC, Universal Input
  • Power: 100W
  • Voltage Input: 85 ~ 265 VAC, 120 ~ 370 VDC
  • Voltage Isolation: 3 kV
  • Voltage Output: 5V
  • Efficiency: 86%
  • Current Output: 20 A
  • Manufacturer: TDK-Lambda Americas Inc.
