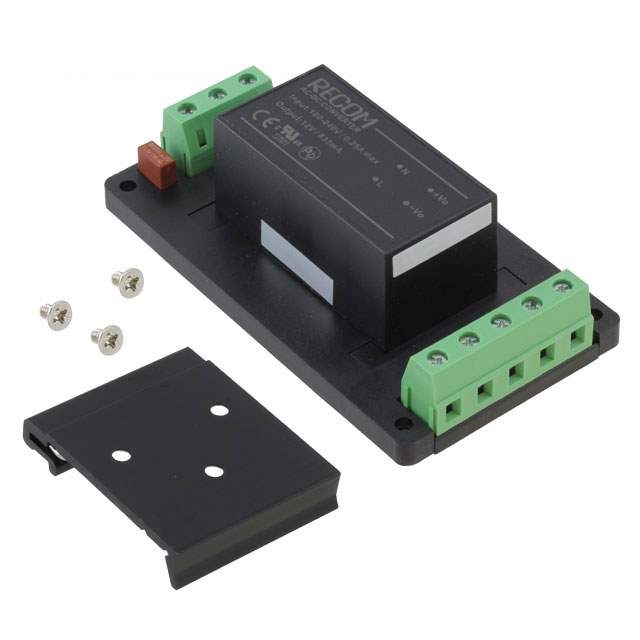

RAC40-05DB-ST Real Image
Same model may have multiple batches, images only for reference.

RAC40-05DB-ST

Part No RAC40-05DB-ST
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description AC/DC CONVERTER 5V -5V 40W  /
Datasheet
RAC40-05DB-ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>Industrial, DIN Rail Power Supplies
Mfr Recom Power
Series POWERLINE RAC40-B (40W)
Package Box
Product Status Obsolete
Input Type AC
Number of Outputs 2
AC Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 4A, 4A
Power (Watts) 40W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Efficiency 81%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Features Universal Input
Dimension 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm)
Approval Agency CE
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 20000863,RAC4005DBST
Standard Package 1
Win Source Part Number 1210249-RAC40-05DB-ST
Ultra Librarian 3D Model Ultra Librarian RAC40-05DB-ST CAD Model

Description

The POWERLINE RAC40-B (40W) is a universal input power supply designed for ITE (Commercial) applications.

  • Outputs: Two
  • Maximum Output Current: 4A each
  • Voltage Isolation: 3 kV
  • First Output Voltage: 5V
  • Second Output Voltage: -5V
  • Efficiency: 81%
  • Operating Temperature: -40°C to 70°C (with derating)
  • Dimensions: 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm)
  • Approval Agency: CE
  • AC Input Voltage: 90 ~ 264 VAC
  • Status: Obsolete
  • Alternative Part Numbers: 20000863 and RAC4005DBST
