Same model may have multiple batches, images only for reference.

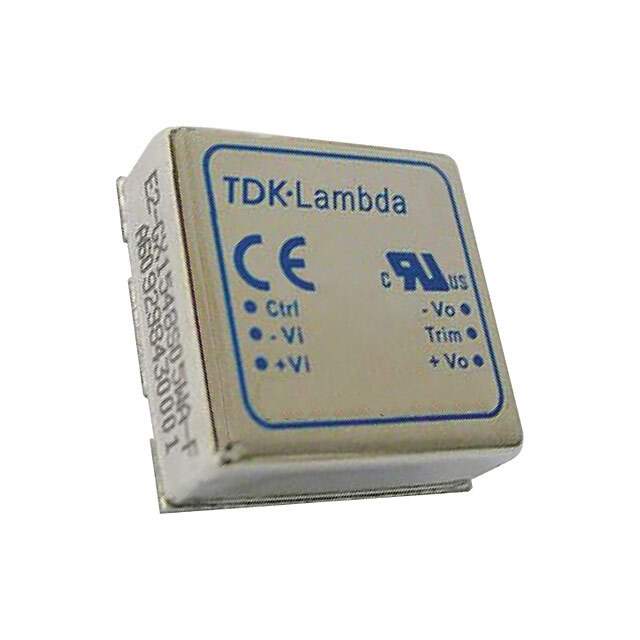

PXB15-48WS12/NT Real Image
Same model may have multiple batches, images only for reference.

PXB15-48WS12/NT

Part No PXB15-48WS12/NT
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 15W / Isolated Module DC DC Converter 1 Output 12V 1.3A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series PXB (15W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 1.3A
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Base Product Number PXB15
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1349078-PXB15-48WS12/NT
Ultra Librarian 3D Model Ultra Librarian PXB15-48WS12/NT CAD Model

Description

The PXB15-48WS12/NT is a 15W isolated module power supply from TDK-Lambda Americas Inc used in ITE (Commercial) applications.

  • Features: Remote On/Off, OCP, OVP, and SCP
  • Current Output: 1.3A
  • Voltage Isolation: 1.6 kV
  • Efficiency: 87%
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C
