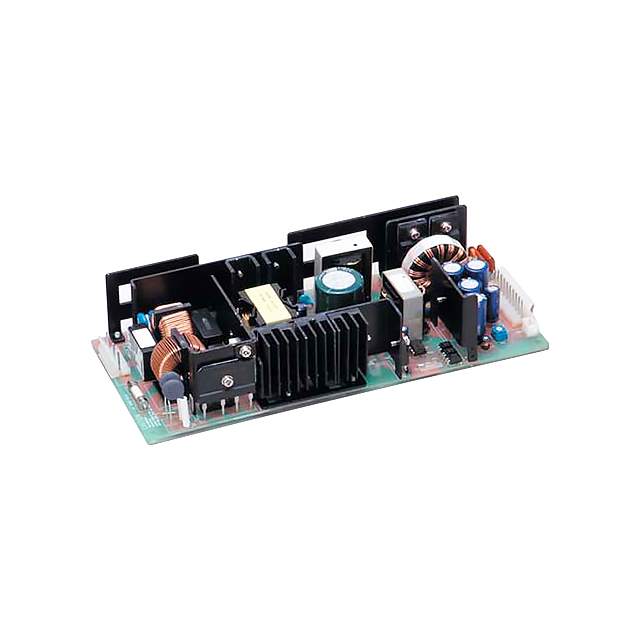

ZWD100PAF-0524/T Real Image
Same model may have multiple batches, images only for reference.

ZWD100PAF-0524/T

Part No ZWD100PAF-0524/T
Manufacturer TDK-Lambda Americas Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 5V 24V 100W / Open Frame AC DC Converters 2 Output 5V 24V 85 ~ 265 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr TDK-Lambda Americas Inc
Series ZWD-PAF (100W)
Package Bulk
Product Status Not For New Designs
Type Open Frame
Number of Outputs 2
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 5V
Voltage - Output 2 24V
Current - Output 1 5 A
Current - Output 2 4 A
Power (Watts) 100W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 79%
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input
Mounting Type Chassis Mount
Size / Dimension 8.74" L x 2.95" W x 1.38" H (222.0mm x 75.0mm x 35.0mm)
Approval Agency CE
Base Product Number ZWD100
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
California Prop 65 Warning Information
Win Source Part Number 1340149-ZWD100PAF-0524/T
Ultra Librarian 3D Model Ultra Librarian ZWD100PAF-0524/T CAD Model

Description

The ZWD100PAF-0524/T is a 100W open frame power supply manufactured by TDK-Lambda Americas Inc.

  • Features: Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input
  • Application: ITE (Commercial)
  • Voltage Input Range: 85 ~ 265 VAC
  • Isolation Voltage: 3 kV
  • Outputs: 2
  • Voltage Output: 5V and 24V
  • Size: 8.74" L x 2.95" W x 1.38" H (222.0mm x 75.0mm x 35.0mm)
  • Efficiency: 79%
  • Minimum Load: No Minimum Load
  • Mounting Type: Chassis Mount
  • Operating Temperature: -10°C ~ 70°C (with derating)
  • Recommended for New Designs: No
  • Approval Agency: CE
