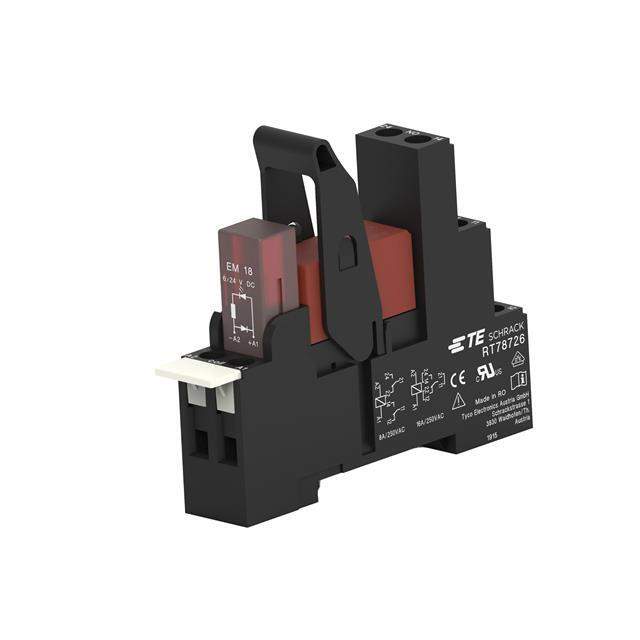

1-1415074-1 Real Image
Same model may have multiple batches, images only for reference.

1-1415074-1

Part No 1-1415074-1
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 24V / General Purpose Relay DPDT (2 Form C) 24VAC Coil DIN Rail
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT, SCHRACK
Package Bulk
Mounting Type DIN Rail
Coil Voltage 24VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 31.6 mA
Coil Type Non Latching
Features Lighted Indicator, Socket Included
Termination Style Screw Terminal
Seal Rating -
Coil Insulation -
Must Operate Voltage 18 VAC
Must Release Voltage 3.6 VAC
Temperature Range - Operating -20°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 350 Ohms
Base Product Number 1-1415074
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Standard Package 10 pcs
Win Source Part Number 1383350-1-1415074-1
Ultra Librarian 3D Model Ultra Librarian 1-1415074-1 CAD Model

Description

The SCHRACK RT series power relay is a versatile component suitable for various applications.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 8A
  • Coil Voltage: 24VAC
  • Coil Current: 31.6mA
  • Termination Style: Screw Terminal
  • Features: Lighted Indicator, Socket Included
  • Mounting Type: DIN Rail
  • Switching Voltage: 400VAC
  • Temperature Range: -20°C to 70°C
  • Manufacturer: TE Connectivity
