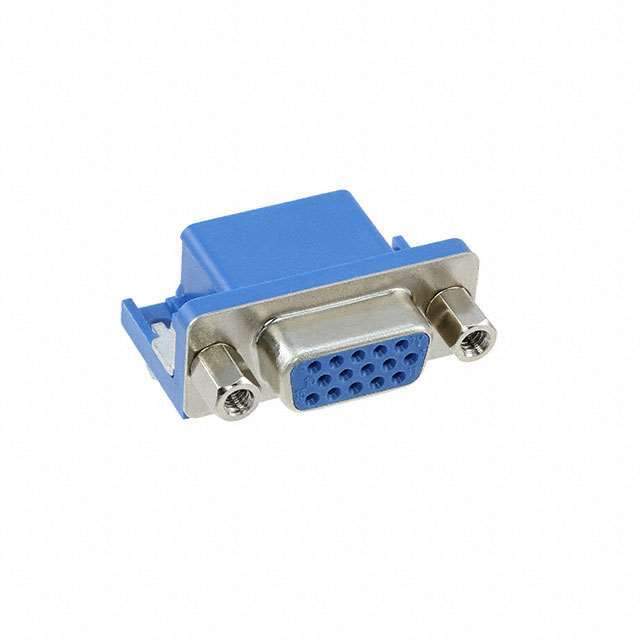

1-1734344-1 Real Image
Same model may have multiple batches, images only for reference.

1-1734344-1

Part No 1-1734344-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN DSUB HD RCPT 15POS R/A SLDR / RCPT ASM, SZ 1, 15POSN, RT ANG, FRONT METAL, SHELL AMPLIMITE HD-22
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Part Status Obsolete (End Of Life)
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Mounting Style Through Hole, Right Angle
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Features Board Lock
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Temperature Range - Operating -55°C ~ 130°C
Voltage Rating 125V
Color Blue
Dielectric Material Polyamide (PA9T), Nylon 9T
Contact Material Phosphor Bronze
Backset Spacing 0.350" (8.89mm)
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806654-1-1734344-1
Ultra Librarian 3D Model Ultra Librarian 1-1734344-1 CAD Model

Description

TE Connectivity AMP Connectors is a manufacturer of a 15-position D-Sub, High Density connector that features a Receptacle, Female Sockets connector type. This connector is designed for through hole, right angle mounting and comes in a steel, nickel plated shell material finish.

  • Shell Material Finish: Steel, Nickel Plated
  • Contact Material: Phosphor Bronze
  • Contact Finish Thickness: Flash
  • Voltage Rating: 125V
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 130°C
  • Features: Board Lock, Female Screwlock (4-40)
  • Status: Obsolete (end of life)
  • Manufacturer Pack Quantity: 100
