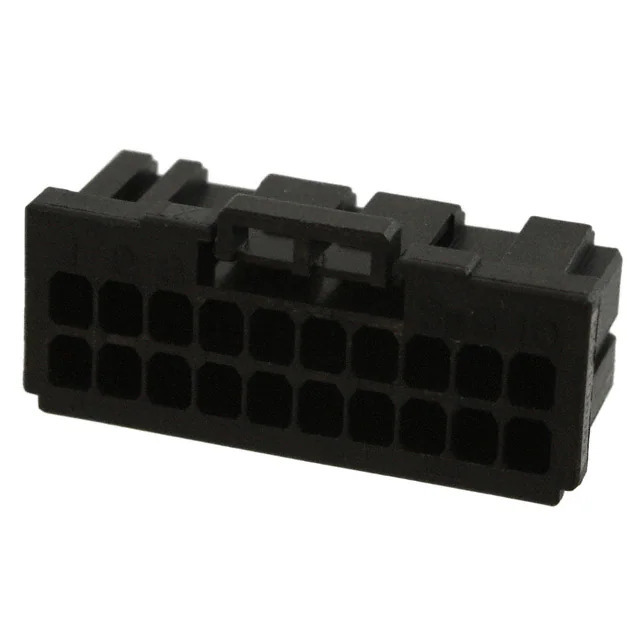

1-1827864-0 TE Connectivity
Same model may have multiple batches, images only for reference.

1-1827864-0

Part No 1-1827864-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT HSG 20POS 2.50MM / 20 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Dynamic D-1200
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.098" (2.50mm)
Number of Rows 2
Row Spacing 0.130" (3.30mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Features Polarizing Key
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 1827864
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365413-1-1827864-0
Ultra Librarian 3D Model Ultra Librarian 1-1827864-0 CAD Model

Description

The Dynamic D-1200 series from TE Connectivity AMP Connectors is a rectangular connector housing designed for various applications.

  • Temperature Range: -55°C ~ 105°C
  • Polarizing Key: Yes
  • Color: Black
  • Fastening Type: Latch Lock
  • Connector Type: Receptacle
  • Number of Positions: 20
  • Number of Rows: 2
  • Pitch: 0.098" (2.50mm)
  • Row Spacing: 0.130" (3.30mm)
  • Mounting Type: Free Hanging (In-Line)
  • Contact Type: Not Included
