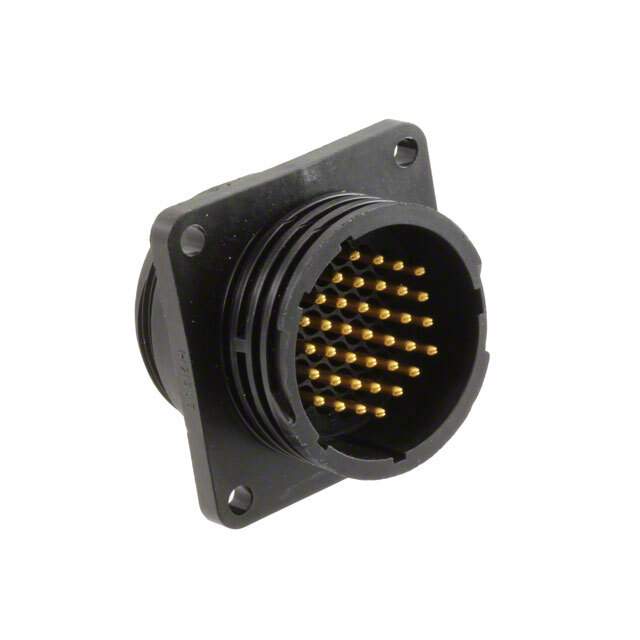

1-206934-1 Real Image
Same model may have multiple batches, images only for reference.

1-206934-1

Part No 1-206934-1
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN RCPT CPC 37POS PANEL MOUNT
Datasheet
1-206934-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series CPC Series 1
Packaging Tray
Connector Type Receptacle, Male Pins
Number of Positions 37
Shell Size - Insert 23-37
Mounting Panel Mount, Flange; Through Hole
Termination Solder
Fastening Type Threaded
Orientation A
Shell Material, Finish Thermoplastic
Contact Finish Gold
Voltage Rating DC 600VAC/DC
Current Rating 13A
Contact Finish Thickness 30μin (0.76μm)
Operating Temperature Range -40°C ~ 105°C
Win Source Part Number 760277-1-206934-1
Popularity Medium
Supply and Demand Status Limited
Family Name 206934
Introduction Date July 18, 2007
ECCN EAR99
Country of Origin Mexico, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1-206934-1 CAD Model

Description

The TE Connectivity AMP Connectors 760277-1-206934-1 is a CPC series 1 connector with 37 positions.

  • Connector Type: CPC series 1
  • Positions: 37
  • Mounting: Panel, Flange, Through Hole
  • Current Rating: 13A
  • Temperature Range: -40°C to 105°C
  • RoHS Compliant: Yes
  • Voltage Rating: 600VAC/DC
  • Contact Plating: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Packaging: Tray
  • Alternatives: 206934-5, 2-206934-1
  • ECCN: EAR99
  • Estimated EOL Date: 2026
  • Popularity: Medium
  • Supply: Limited
