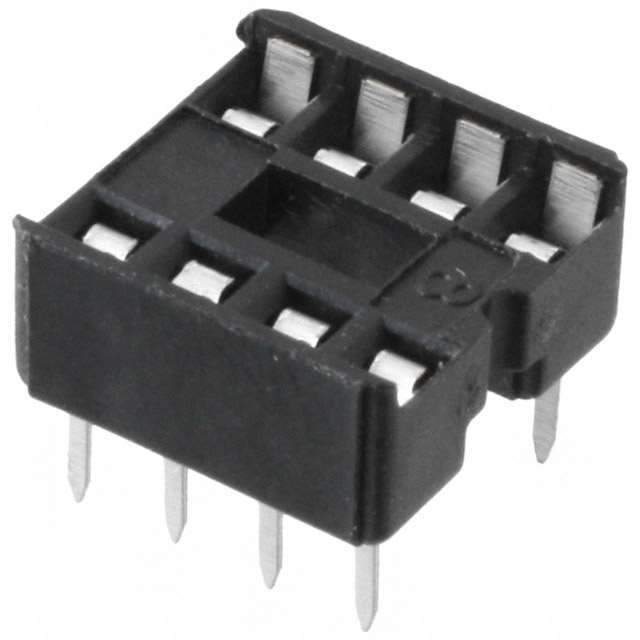

The 1-390261-2 is a DIP type electronic component with a 0.3" (7.62mm) row spacing manufactured by TE Connectivity AMP Connectors.

• Type: Sockets for ICs, Transistors
• Row Spacing: 0.3" (7.62mm)
• Frame: Open
• Termination: Solder
• Package: Tube
• Standard Package: 60
• Number of Positions/Pins: 8 (2 x 4)
• Pitch-Mating: 0.100" (2.54mm)
• Contact Finish-Mating: Tin
• Contact Finish Thickness-Mating: 60.0µin (1.52µm)
• Contact Material-Mating: Phosphor Bronze
• Pitch-Post: 0.100" (2.54mm)
• Contact Finish-Post: Tin
• Contact Finish Thickness-Post: 60.0µin (1.52µm)
• Contact Material-Post: Phosphor Bronze
• Termination Post Length: 0.118" (3.00mm)
• Contact Resistance: 30mOhm
• Operating Temperature: -40°C to 105°C
• MSL: 1 (Unlimited)
• REACH: REACH Unaffected
• HTSUS: 8536.69.4040
