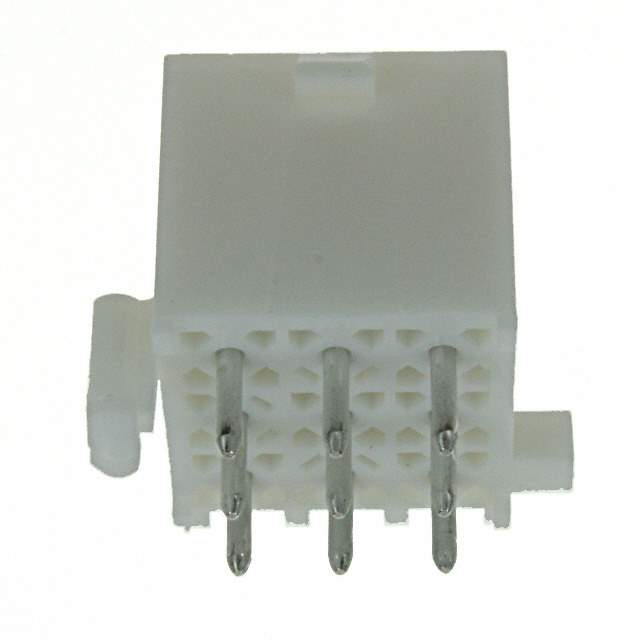

1-770182-1 Real Image
Same model may have multiple batches, images only for reference.

1-770182-1

Part No 1-770182-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 9POS 4.14MM / Connector Header Through Hole 9 position 0.163" (4.14mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 9
Number of Rows 3
Row Spacing - Mating 0.163" (4.14mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.175" (4.45mm)
Insulation Height 0.531" (13.50mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 770182
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A32464,2266-1-770182-1,-1-770182-1-SI,-1-770182-1-LSI
Standard Package 200
Win Source Part Number 1334429-1-770182-1
Ultra Librarian 3D Model Ultra Librarian 1-770182-1 CAD Model

Description

TE Connectivity AMP Connectors' 9-position male pin header is a high-quality product that is perfect for board to cable/wire applications.

  • Insulation Material: polyamide (PA), nylon
  • Pitch-Mating: 0.163" (4.14mm)
  • Shrouding: shrouded-4 wall
  • RoHS Compliant: true
  • Voltage Rating: 600VAC
  • Packaging: bulk
  • Temperature Range: -20°C to 105°C
