Same model may have multiple batches, images only for reference.

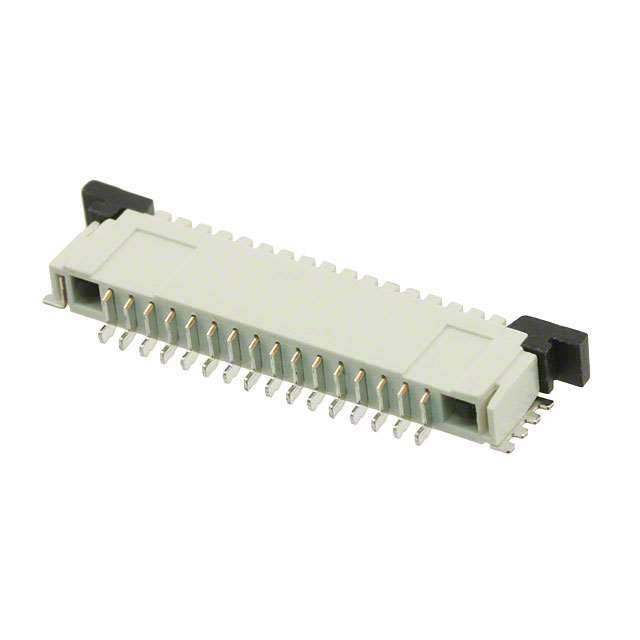

1-84953-6 Real Image
Same model may have multiple batches, images only for reference.

1-84953-6

Part No 1-84953-6
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 16POS 1.00MM R/A / 16 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr TE Connectivity AMP Connectors
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 16
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.101" (2.56mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 78.7µin (2.00µm)
Housing Color Natural
Actuator Color Black
Base Product Number 84953
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A100322TR,-1-84953-6-SI,1849536,A100322CT,1-84953-6-ND,A100322DKR
Standard Package 1,200
Win Source Part Number 1035098-1-84953-6
Ultra Librarian 3D Model Ultra Librarian 1-84953-6 CAD Model

Description

The 1035098-1-84953-6 connector from TE Connectivity AMP Connectors is a reliable component for various connector applications.

  • Positions: 16
  • Pitch: 0.039" (1.00mm)
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Mounting Type: Surface Mount, Right Angle
  • Package Quantity: 1,200
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Alternative Part Numbers: 52610-1075, 1-84952-6, 1-84952-4, 1-84953-4, 1-84953-8, 1-84953-2, 2-84952-01849536
