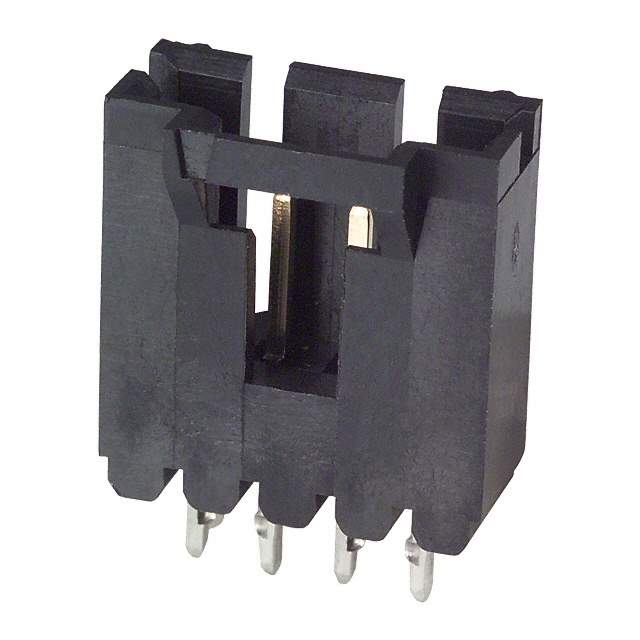

103670-3 Real Image
Same model may have multiple batches, images only for reference.

103670-3

Part No 103670-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU MTE
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 267V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103670
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A28480,-4-40001-6591-SI,2266-103670-3,1036703,103670-3-ND,-103670-3-SI,-4-40001-6591-SI-ND
Standard Package 42
Win Source Part Number 1205348-103670-3
Ultra Librarian 3D Model Ultra Librarian 103670-3 CAD Model

Description

The TE Connectivity AMP Connectors 1205348-103670-3 is a 4-position male pin header connector with a keying slot.

  • Series: AMPMODU MTE
  • Application: Automotive, General Purpose, Medical, Telecommunications
  • Connector Type: Header
  • Number of Positions: 4
  • Contact Type: Male Pin
  • Shrouding: Shrouded 4-Wall
  • Mounting Type: Through Hole
  • Termination: Press-Fit and Solder
  • Contact Material: Brass
  • Contact Finish: Gold
  • Voltage Rating: 267V
  • Current Rating: 3A
  • Insulation Material: Thermoplastic
  • Insulation Color: Black
  • Pitch: 0.100" (2.54mm)
  • Row Spacing: -
  • Contact Length - Mating: 0.230" (5.84mm)
  • Contact Length - Post: 0.130" (3.30mm)
  • Contact Finish Thickness - Mating: 15.0µin (0.38µm)
  • Contact Finish Thickness - Post: 100.0µin (2.54µm)
  • Contact Shape: Square
  • Fastening Type: Latch Holder
  • Material Flammability Rating: UL94 V-0
  • Package: Tube
  • Standard Package Quantity: 42
  • RoHS: Non-Compliant
  • REACH: Affected
