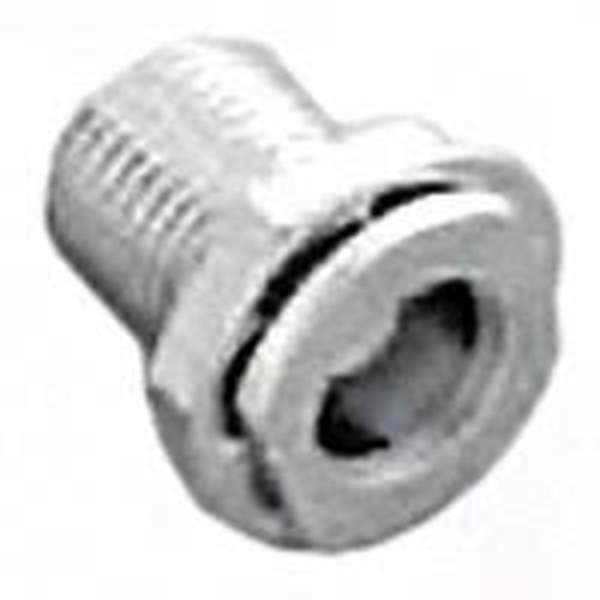

Same model may have multiple batches, images only for reference.

1060960-1

Name: 1060960-1
Brand: TE Connectivity
SKU: 1041249
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1060960-1
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Description	CONN MCX RCPT STR 50 OHM SOLDER / MCX Connector Receptacle, Female Socket 50Ohm Panel Mount Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	TE Connectivity AMP Connectors
Package	Bulk
Product Status	Obsolete
Connector Style	MCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Rear Side Nut
Fastening Type	Snap-On
Frequency - Max	6 GHz
Number of Ports	1
Housing Color	Silver
Center Contact Material	Beryllium Copper
Includes	3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material	Brass
Body Finish	Nickel
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	335 V
Mating Cycles	500
Insertion Loss	0.1dB
Base Product Number	1060
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Other Names	1060960-1-ND,-1060960-1-SI,A111760,10609601
Standard Package	1
Win Source Part Number	1041249-1060960-1
Ultra Librarian 3D Model	Ultra Librarian 1060960-1 CAD Model

Alternative Products

Description

The 1041249-1060960-1 is a female socket receptacle from TE Connectivity AMP Connectors.

Type: Snap-on type connector
Contact Termination: Solder
Connector Style: MCX
Voltage Rating: 335 V
Maximum Frequency: 6 GHz
Housing Color: Silver
Impedance: 50Ohm
Mounting Feature: Bulkhead - rear side nut
Body Material: Brass with a nickel finish
Center Contact Material: Beryllium copper with gold plating
Dielectric Material: Polytetrafluoroethylene (PTFE)
Mounting Type: Panel mount
Temperature Range: -65 degrees Celsius to 165 degrees Celsius
Includes: 3 pieces - 1 connector, 1 lock washer, and 1 nut
Alternative Parts (Cross-Reference): 1059596-1, 1052523-1, 1052689-1, 112290, 1052534-1, 1061001-1, 903-375J-53P, 1330126-1, 3-1478955-0, B6721E1-NT3G-5-50, B6721A1-NT3G-1-50, and N6421A1-NT3G-1-505858-0000-10
REACH: REACH affected
HTSUS: 8536.69.4010
