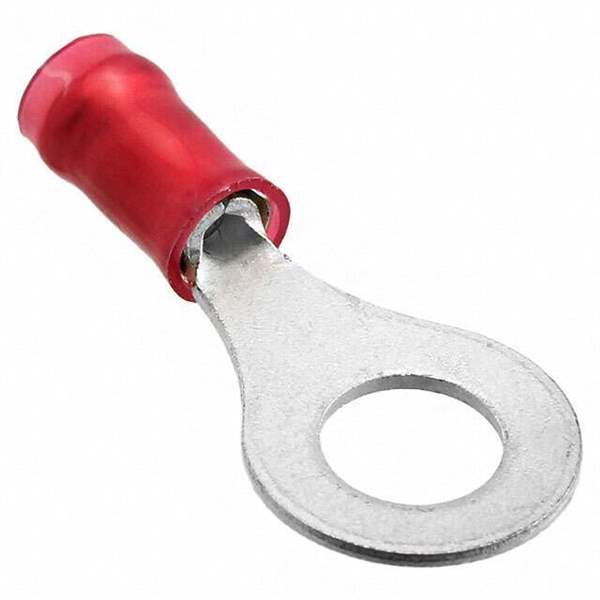

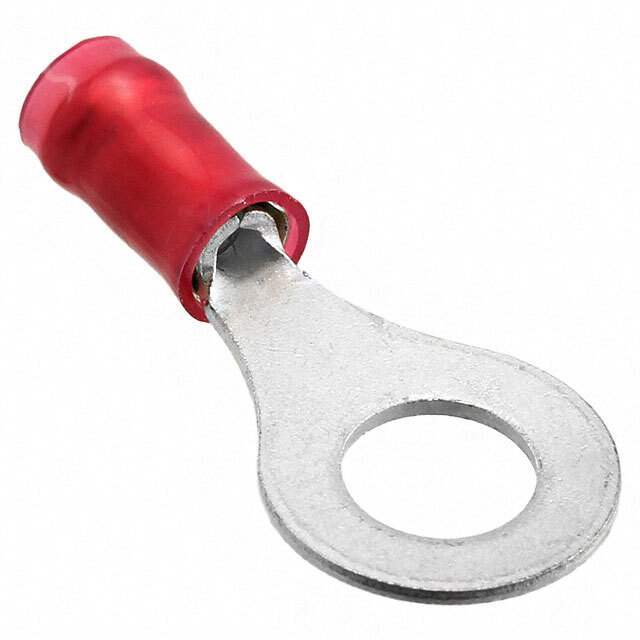

130046 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

130046

Part No 130046
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 16-22AWG M6 CRIMP
Datasheet
130046 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Part Status Active
Terminal Type Circular
Stud/Tab Size M6 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.472" (12.00mm)
Length - Overall 1.083" (27.51mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Ultra Librarian 3D Model Ultra Librarian 130046 CAD Model

Description

Closed Ring Tongue Terminal, 22 – 16 AWG, #6 Stud, 6.3 mm [.248 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
