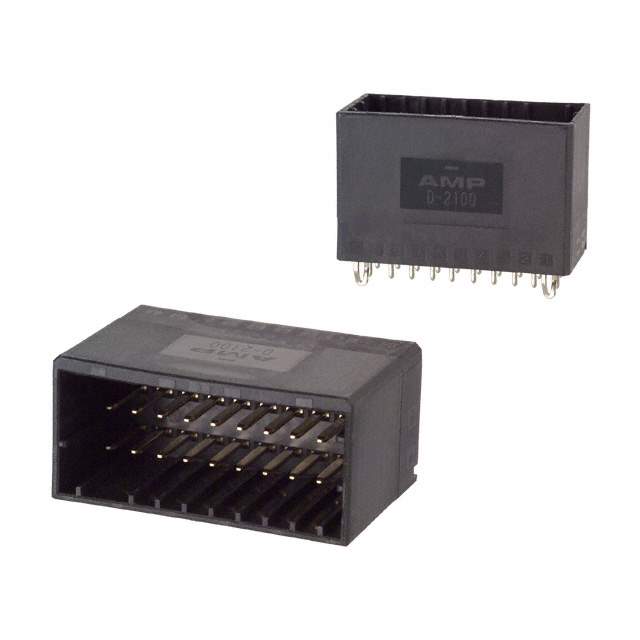

Part No 1318127-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.5MM / Connector Header Through Hole 20 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-2100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.148" (3.75mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.700" (17.78mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 1318127
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1318127-1-SI,A29813,A29813-NDR,13181271,-1318127-1-CSI,2266-1318127-1
Standard Package 17
Win Source Part Number 1024253-1318127-1
Ultra Librarian 3D Model Ultra Librarian 1318127-1 CAD Model

Description

The Dynamic D-2100 series header connector from TE Connectivity AMP Connectors is a 20-position, dual-row connector that is ideal for use in general purpose and industrial applications.

  • Number of Positions: 20
  • Fastening Type: Detent Lock
  • Board Lock Feature: Yes
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Connection Style: Board-to-Board or Cable
  • Pitch: 0.098" (2.50mm)
  • Shrouding: Shrouded 4-Wall
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Mounting Type: Through-Hole
  • Insulation Material: Thermoplastic, Polyester, Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
