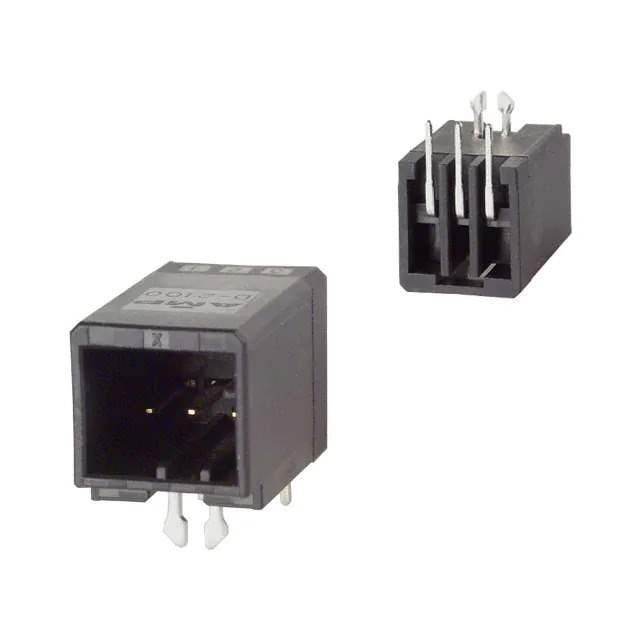

Same model may have multiple batches, images only for reference.

1376135-1

Name: 1376135-1
Brand: TE Connectivity
SKU: 853956
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1376135-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 3POS 2.5MM / Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	Dynamic D-2100
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Tab
Pitch - Mating	0.098" (2.50mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Post	0.131" (3.33mm)
Insulation Height	0.431" (10.95mm)
Contact Shape	Rectangular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Polyester, Glass Filled
Features	Board Lock
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	5A
Voltage Rating	250V
Applications	General Purpose, Industrial
Base Product Number	1376135
Standard Package	46 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853956-1376135-1
Ultra Librarian 3D Model	Ultra Librarian 1376135-1 CAD Model

Alternative Products

Description

The 853956-1376135-1 is a header connector with male pins.

Series: Dynamic D-2100
Positions: 3
Termination: Solder
Fastening Type: Detent Lock
Contact Material: Copper Alloy
Contact Finish: Gold
Mounting Type: Through Hole, Right Angle
Insulation Height: 0.431" (10.95mm)
Applications: General Purpose, Industrial
Manufacturer: TE Connectivity
