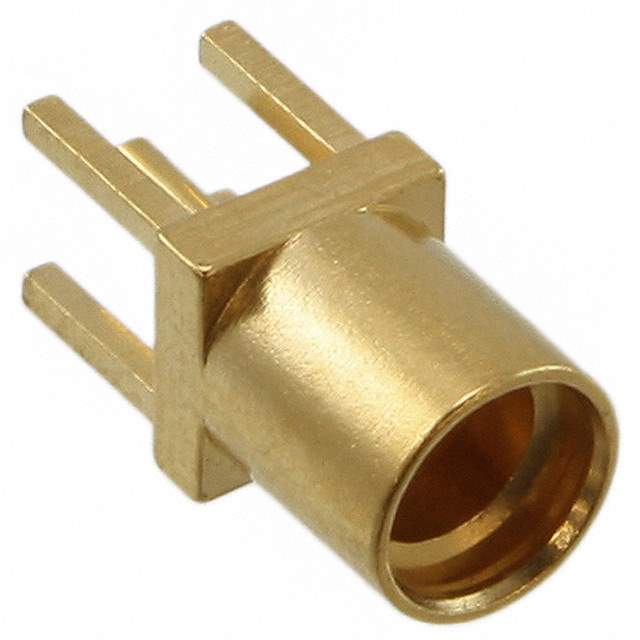

Same model may have multiple batches, images only for reference.

1408150-1

Name: 1408150-1
Brand: TE Connectivity
SKU: 1218323
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1408150-1
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Description	CONN MMCX JACK STR 50 OHM PCB / MMCX Connector Jack, Female Socket 50Ohm Through Hole Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	TE Connectivity AMP Connectors
Package	Bulk
Product Status	Obsolete
Connector Style	MMCX
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Through Hole
Fastening Type	Snap-On
Frequency - Max	6 GHz
Number of Ports	1
Housing Color	Gold
Center Contact Material	Beryllium Copper
Body Material	Brass
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-55°C ~ 155°C
Voltage Rating	170 V
Mating Cycles	500
Base Product Number	1408150
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Other Names	14081501,-1408150-1-SI,A30740,-CB0869-000-SI-ND,-1408150-1-CSI,-CB0869-000-CSI-ND,2266-1408150-1,-CB0869-000-SI,1408150-1-ND,-CB0869-000-CSI
Standard Package	100
Win Source Part Number	1218323-1408150-1
Ultra Librarian 3D Model	Ultra Librarian 1408150-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors electronic component with Win Source Part Number 1218323-1408150-1 is a coaxial connector (RF).

Type: female socket jack
Fastening Type: snap-on
Connector Style: MMCX
Voltage Rating: 170 V
Frequency Range: up to 6 GHz
Impedance: 50Ohm
Package: bulk
Standard Package: 100
Housing Color: gold
Ports: one
Body Material: brass
Center Contact Material: beryllium copper
Center Contact Plating: gold
Dielectric Material: polytetrafluoroethylene (PTFE)
Temperature Range: -55°C to 155°C
Alternative Parts: 1408150-1 and 1408150-1
