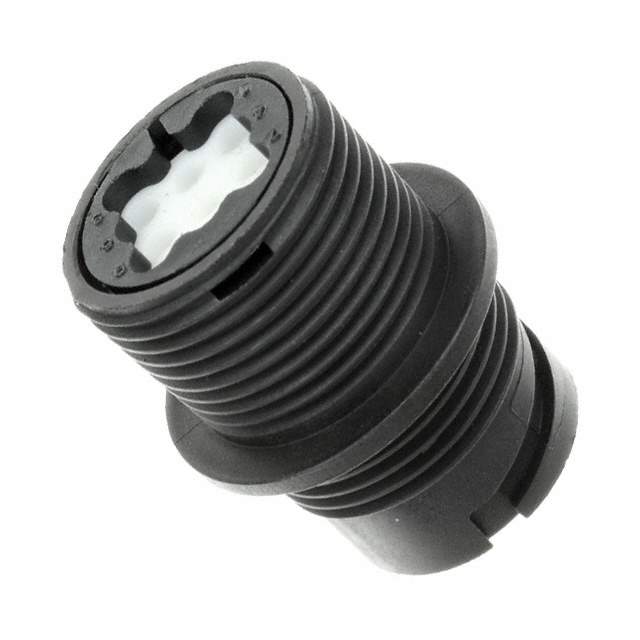

1445816-3 Real Image
Same model may have multiple batches, images only for reference.

1445816-3

Part No 1445816-3
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN RCPT HSNG MALE 9POS PNL MNT  /  9 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series CPC, Miniature
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 9
Shell Size - Insert 11-9
Contact Type Crimp
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front or Rear Side Nut
Fastening Type Bayonet Lock
Orientation A
Shell Material Thermoplastic
Housing Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1445816
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names 14458163,A30013,-1445816-3-SI,2266-1445816-3
Standard Package 100
Win Source Part Number 1002230-1445816-3
Ultra Librarian 3D Model Ultra Librarian 1445816-3 CAD Model

Description

This circular connector housing is a part of the CPC, Miniature series and is designed for male pins.

  • Series: CPC, Miniature
  • Pin Gender: Male
  • Positions: 9
  • Shielded: Yes
  • Connector Type: Receptacle Housing
  • Contact Type: Crimp
  • Locking Type: Bayonet Lock
  • Packaging: Bulk
  • RoHS Compliant: No
  • Manufacturer: TE Connectivity AMP Connectors
  • MSL Level: 1 (unlimited)
  • REACH Status: Vendor undefined
