Same model may have multiple batches, images only for reference.

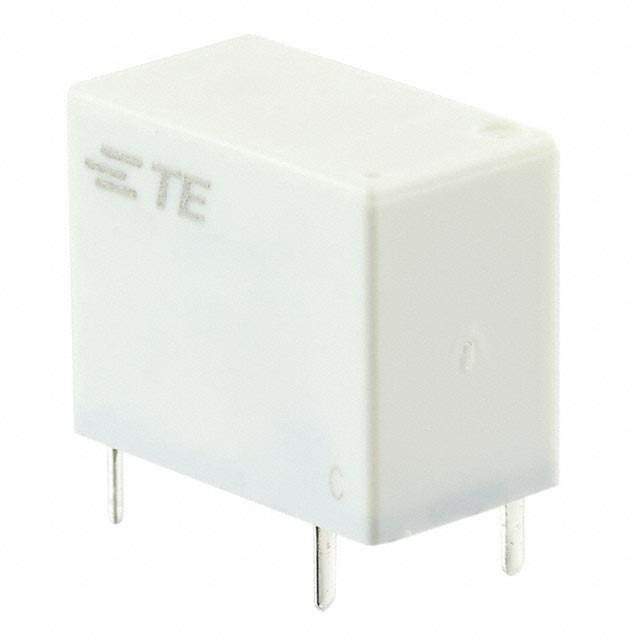

1461405-5 Real Image
Same model may have multiple batches, images only for reference.

1461405-5

Part No 1461405-5
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 12VDC 320Ohm 10A SPST-NO (18.2x10.2x14.7)mm THT General Purpose Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 37.5 mA
Coil Power 450 mW
Coil Resistance 320 Ω
Coil Type Non-Latching
Coil Voltage (AC) 12 V
Coil Voltage (DC) 12 V
Contact Current Rating 10 A
Contact Material Cadmium, Silver
Contact Voltage Rating (DC) 30 V
Depth 10.2 mm
ELV Non-Compliant
Height 14.7 mm
Lead Free Yes
Length 18.2 mm
Max Current Rating 10 A
Maximum Operating Temperature 70 °C
Min Operating Temperature -30 °C
Mount Through Hole
Operate Time 10 ms
Packaging Bulk
Radiation Hardening No
Relay Type General Purpose
Release Time 4 ms
RoHS Compliant
Termination PC Pin, PCB
Throw Configuration SPST
Weight 9 g
Width 10.16 mm
Win Source Part Number 1083112-1461405-5
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 1461405-5 CAD Model

Description

The TE Connectivity 1083112-1461405-5 is a general-purpose relay that can be used in a variety of applications.

  • Contact Current Rating: 10 A
  • Coil Voltage: 12 V
  • PC Pin: Yes
  • Termination: PCB
  • Mounting: Through Hole
  • Height: 14.7 mm
  • Weight: 9 g
  • Width: 10.16 mm
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 70°C
  • Throw Configuration: SPST
