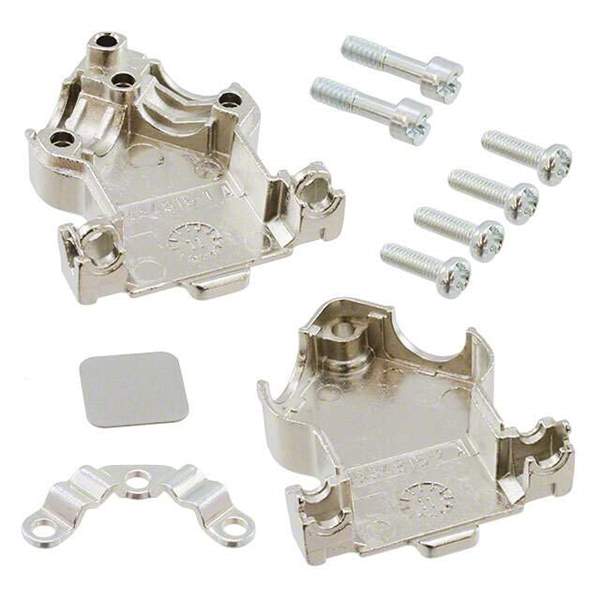

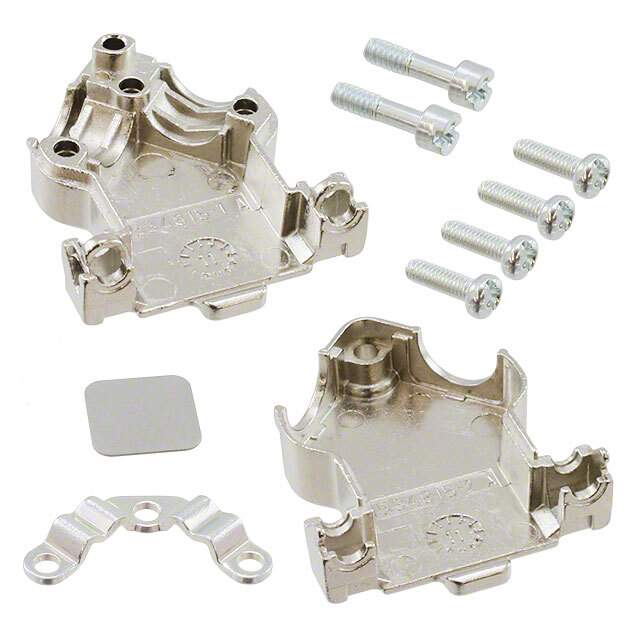

1534805-1 Real Image
Same model may have multiple batches, images only for reference.

1534805-1

Part No 1534805-1
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 9POS 45DEG SHLD / 9 Position Two Piece Backshell Connector 45° Shielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Backshells, Hoods
Manufacturer TE Connectivity AMP Connectors
Packaging Bag
Accessory Type Two Piece Backshell
Number of Positions 9
Cable Type Round
Cable Exit 45°
Shielding Shielded
Material Metal, Gadolinium - Zinc
Hardware Assembly Hardware, Cable Clamp
Features Mating Screws 4-40
Base Product Number 1534805
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 1534805-1-ND,15348051,A104944,-1534805-1-SI
Standard Package 10
Win Source Part Number 1333174-1534805-1
Ultra Librarian 3D Model Ultra Librarian 1534805-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333174-1534805-1 is a two-piece backshell for D-sub, D-shaped connectors.

  • Win Source Availability: Yes
  • Material: Metal, Gadolinium - Zinc
  • Shielding: Yes
  • Application: High-Speed
  • Voltage: 500V (Maximum)
