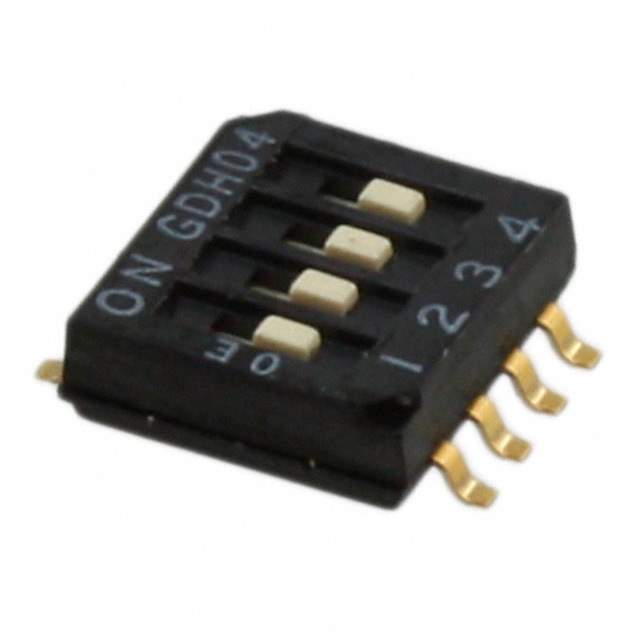

1571983-5

Part No 1571983-5
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
1571983-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Series GDH
Packaging Reel package
Circuit SPST
Number of Positions 4
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.244" (6.20mm)
Operating Temperature Range -30°C ~ 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 760486-1571983-5
Popularity Medium
Supply and Demand Status Limited
Family Name 1571983
Introduction Date March 16, 2005
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1571983-5 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches GDH series slide switch is designed with a SPST circuit and SMD mounting type.

  • Series: GDH
  • Circuit: SPST
  • Mounting Type: SMD
  • Positions: 4
  • Actuator Type: Flush, Recessed Slide
  • Package Type: Reel Package
  • Pitch: 0.050" (1.27mm), Half
  • Termination: Gull Wing
  • Operating Temperature Range: -30°C to 85°C
  • Features: Tape Seal
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.091" (2.30mm)
  • Length: 0.244" (6.20mm)
  • Body Material: Polyphenylene Sulfide (PPS)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Alternative Parts: A6HF-4102-PM, A6HF-4102, A6HF-4102-P
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2026
  • HTSUS: 8536.50.9065
  • Manufacturer Pack Quantity: 640
  • MSL Level: 1 (Unlimited)
