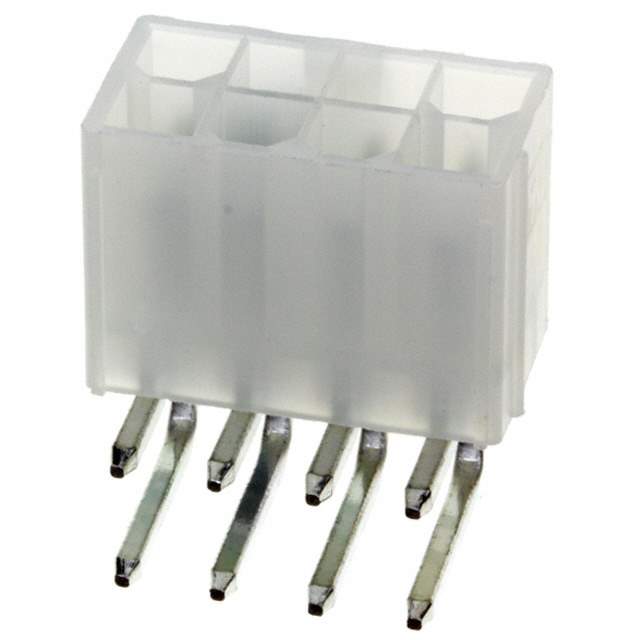

1586041-8 Real Image
Same model may have multiple batches, images only for reference.

1586041-8

Part No 1586041-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 4.2MM / Connector Header Through Hole, Right Angle 8 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.402" (10.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Insulation Color Natural
Current Rating (Amps) 9A
Voltage Rating 600VAC
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 1586041
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1586041-8-SI,-1586041-8-LSI,A30617,15860418
Standard Package 210
Win Source Part Number 1334377-1586041-8
Ultra Librarian 3D Model Ultra Librarian 1586041-8 CAD Model

Description

The TE Connectivity AMP Connectors 1334377-1586041-8 is a header connector designed for use in general-purpose, industrial, and lighting applications.

  • Positions: 8
  • Contact Type: male pin
  • Termination: solder
  • Fastening: locking ramp
  • Voltage Rating: 600VAC
  • ECCN Compliant: EAR99
  • Temperature Range: -40°C to 105°C
  • Current Rating: 9A
  • Mounting Style: through-hole, right-angle
  • RoHS Compliant: yes
