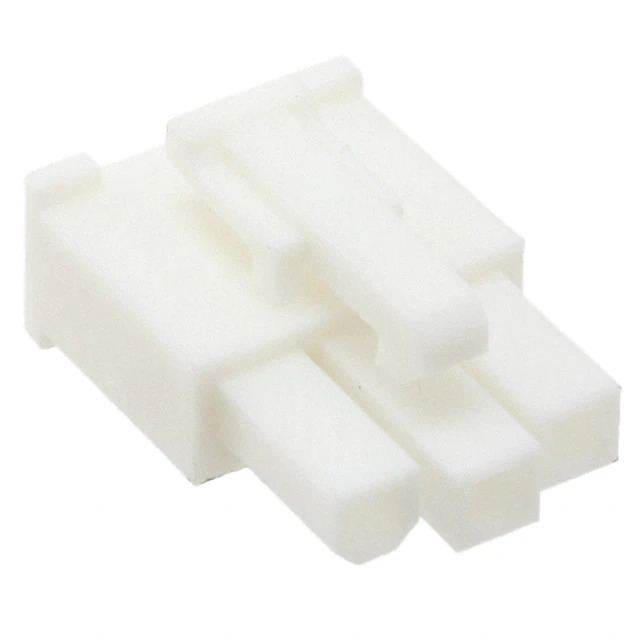

Same model may have multiple batches, images only for reference.

1586106-3

Name: 1586106-3
Brand: TE Connectivity
SKU: 1365488
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1586106-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 3POS 4.20MM / 3 Rectangular Connectors - Housings Receptacle White 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	VAL-U-LOK
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	3
Pitch	0.165" (4.20mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	White
Features	-
Temperature Range - Operating	-40°C ~ 105°C
Note	Contacts Not Included
Base Product Number	1586106
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1365488-1586106-3
Ultra Librarian 3D Model	Ultra Librarian 1586106-3 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors VAL-U-LOK series is a rectangular connector housing designed for various applications.

Temperature Range: -40°C to 105°C
Mounting Type: Free Hanging (In-Line)
Fastening Type: Latch Lock
Connector Type: Receptacle
Contact Gender: Female Socket
Number of Positions: 3
Number of Rows: 1
Termination: Crimp
Color: White
Contacts Included: No
Pitch: 0.165" (4.20mm)
