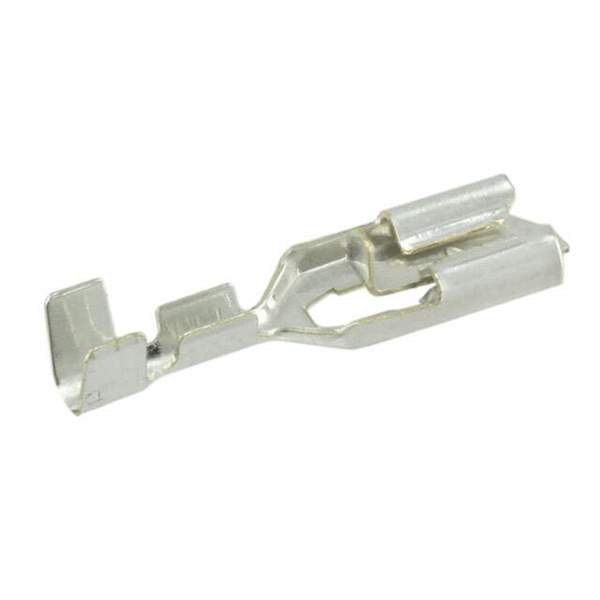

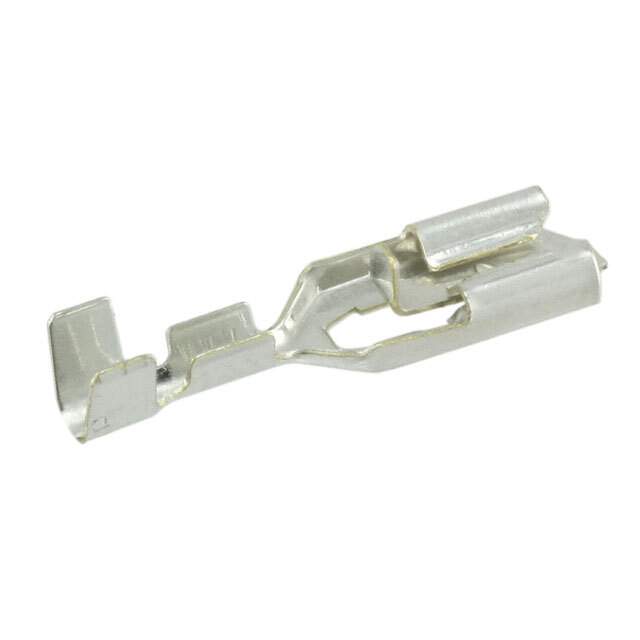

170324-1 Real Image
Same model may have multiple batches, images only for reference.

170324-1

Part No 170324-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 20-24AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 20-24 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.850" (21.59mm)
Termination Crimp
Wire Gauge 20-24 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.059" ~ 0.106" (1.50mm ~ 2.69mm)
Base Product Number 170324
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 2266-170324-1TR,-170324-1-LSI,170324-1-ND,A100471TR,-170324-1-SI,A100471CT,-170324-1-CSI,1703241
Standard Package 8,000
Win Source Part Number 1333732-170324-1
Ultra Librarian 3D Model Ultra Librarian 170324-1 CAD Model

Description

The 170324-1 is a quick connect, quick disconnect connector manufactured by TE Connectivity AMP Connectors.

  • Win Source Part Number: 1333732-170324-1
  • Gender: Female
  • Insulation: Non-Insulated
  • Termination Type: Crimp
  • Wire Gauge: 20-24 AWG
  • RoHS Compliant: Yes
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Demand: high demand
  • Supply: limited supply
