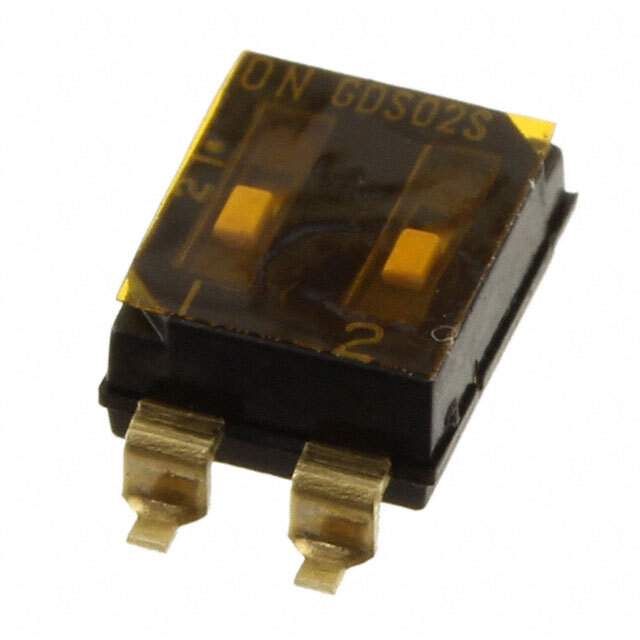

1825006-3 Real Image
Same model may have multiple batches, images only for reference.

1825006-3

Part No 1825006-3
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.114" (2.90mm)
Mounting Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.194" (4.93mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 1825006
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9032
Other Part Number -1825006-3-SI,-GDS02S04-SI-ND,1825006-3-ND,450-2052,-GDS02S04-LSI,-GDS02S04-SI
Standard Package 90
Win Source Part Number 1323830-1825006-3
Ultra Librarian 3D Model Ultra Librarian 1825006-3 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches DIP Switch is a surface mount switch that comes in a tube packaging.

  • Positions: 2
  • Pitch: 0.100 inches (2.54mm)
  • Termination Style: Gull Wing
  • Feature: Tape Seal
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Height Above Board: 0.114 inches (2.90mm)
  • Length: 0.194 inches (4.93mm)
  • Standard Package: 90
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Temperature Range: -30°C to 85°C
  • ECCN: EAR99
  • ROHS: ROHS3 Compliant
