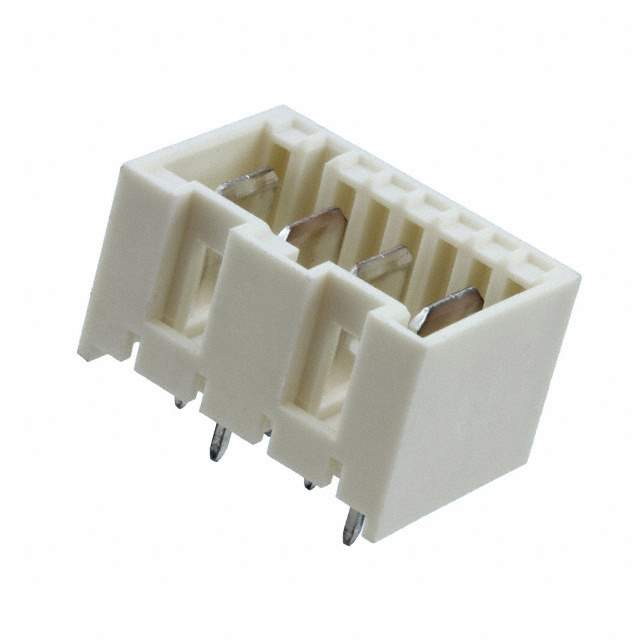

Same model may have multiple batches, images only for reference.

1971846-4

Name: 1971846-4
Brand: TE Connectivity
SKU: 1027391
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	1971846-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 5MM / Connector Header Through Hole 4 position 0.197" (5.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Package	Bulk
Connector Type	Header
Contact Type	Tab
Pitch - Mating	0.197" (5.00mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.504" (12.80mm)
Contact Shape	Rectangular
Contact Finish - Mating	Silver
Contact Finish - Post	Silver
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Glow Wire Compliant
Temperature Range - Operating	-40°C ~ 120°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	20A
Voltage Rating	250VAC
Applications	General Purpose
Base Product Number	1971846
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	-1971846-4-SI,2266-1971846-4,A118595
Standard Package	200
Win Source Part Number	1027391-1971846-4
Ultra Librarian 3D Model	Ultra Librarian 1971846-4 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1027391-1971846-4 is a 4-position male pin header connector with board guide and glow wire compliant features.

Voltage Rating: 250VAC
Application: General Purpose
Termination: Solder
Fastening Type: Latch Holder
Contact Material: Copper Alloy
Insulation Material: Polyamide (PA), Nylon
Contact Finish: Silver
Current: 20A
Temperature Range: -40°C to 120°C
