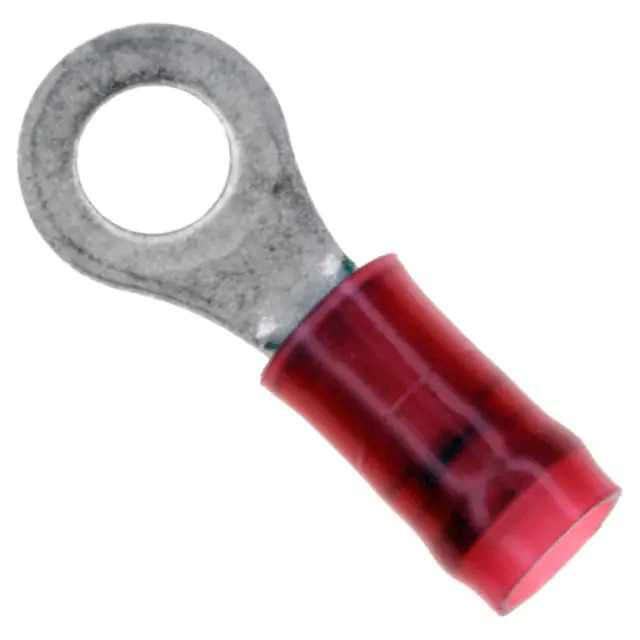

2-31890-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2-31890-1

Part No 2-31890-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 16-22AWG #8 CRIMP / Ring Terminal Connector 8 Stud Circular 16-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.844" (21.44mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 31890
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365093-2-31890-1
Ultra Librarian 3D Model Ultra Librarian 2-31890-1 CAD Model

Description

The 1365093-2-31890-1 is a ring connector from TE Connectivity AMP Connectors.

  • Series: PIDG
  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge Range: 16-22 AWG
  • Contact Finish: Tin
  • Insulated: Yes
  • Overall Length: 0.844" (21.44mm)
  • Color: Red
  • Termination: Crimp
  • Contact Material: Copper
  • Terminal Type: Circular
  • Insulation Diameter: 0.105" to 0.140" (2.67mm to 3.56mm)
  • Insulation Material: Polyamide (PA), Nylon
  • Stud/Tab Size: 8 Stud
  • Thickness: 0.031" (0.79mm)
  • Width: 0.312" (7.92mm)
  • Features: Serrated Termination
  • Product Status: Active
