Same model may have multiple batches, images only for reference.

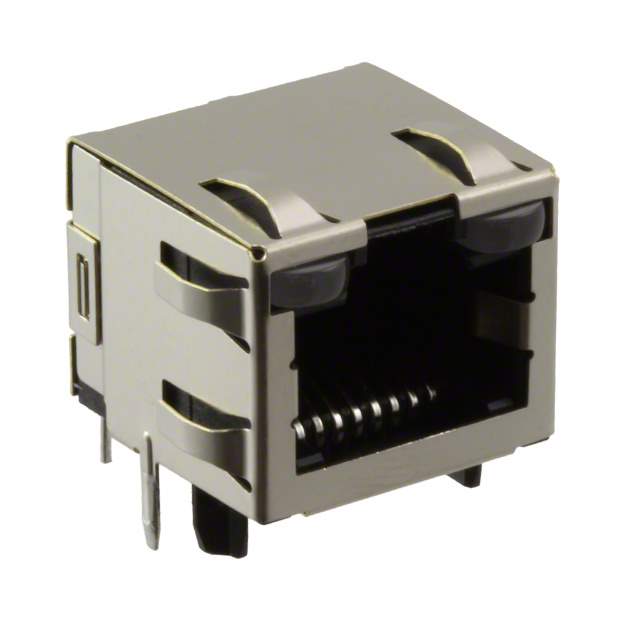

2-406549-8 Real Image
Same model may have multiple batches, images only for reference.

2-406549-8

Part No 2-406549-8
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat5
Features Board Guide
LED Color Yellow, Green - Yellow, Green
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Thermoplastic
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 406549
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -2-406549-8-SI,2-406549-8-ND,-P04065-000-SI,A121578,-P04065-000-SI-ND
Standard Package 441
Win Source Part Number 1333952-2-406549-8
Ultra Librarian 3D Model Ultra Librarian 2-406549-8 CAD Model

Description

The TE Connectivity AMP Connectors 1333952-2-406549-8 is a shielded, EMI finger, 90-degree angle (right) jack connector with board guide.

  • Row: 1-row connector
  • Positions/Contacts: 8p8c (RJ45, Ethernet)
  • LEDs: Yellow and Green LEDs
  • Housing Material: Thermoplastic
  • Contact Material: Phosphor Bronze
  • Contact Finish Thickness: Gold, 50.0µin (1.27µm)
  • Mounting: Through-hole mounting
  • Termination: Solder termination
  • Rated: Cat5
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited)
  • RoHS3 Compliant: Yes
  • Package: 441
