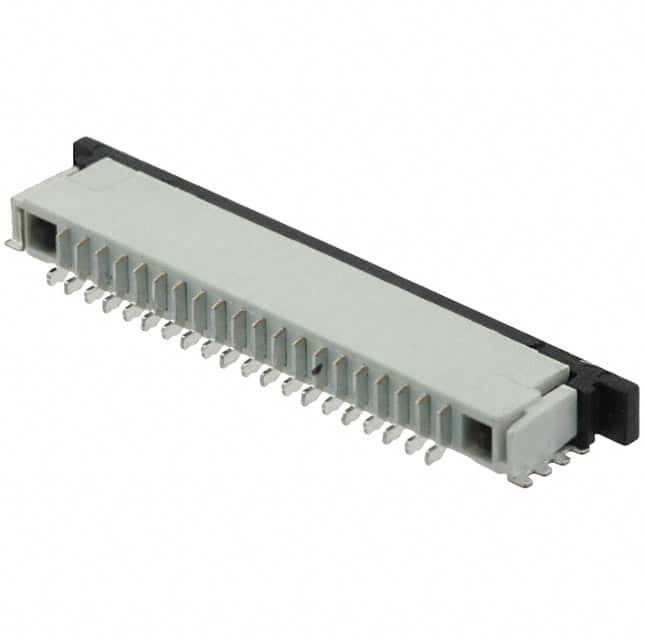

Same model may have multiple batches, images only for reference.

2-84952-0

Name: 2-84952-0
Brand: TE Connectivity
SKU: 854876
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2-84952-0
Manufacturer	TE Connectivity
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 20POS 1MM R/A / 20 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	TE Connectivity
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	20
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.101" (2.56mm)
Locking Feature	Slide Lock
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	200V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Contact Finish Thickness	78.7µin (2.00µm)
Housing Color	Natural
Actuator Color	Black
Base Product Number	84952
Standard Package	1,200 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854876-2-84952-0
Ultra Librarian 3D Model	Ultra Librarian 2-84952-0 CAD Model

Alternative Products

Description

The TE Connectivity 854876-2-84952-0 is a flat flexible connector assembly designed for use in electronic devices.

Positions: 20
Pitch: 0.039" (1.00mm)
Features: Solder Retention, Zero Insertion Force (ZIF)
Contact Finish: Tin
Contact Finish Thickness: 78.7μin (2.00μm)
Package: Tape & Reel
Mounting Type: Surface Mount, Right Angle
Voltage Rating: 200V
Current Rating: 1A
