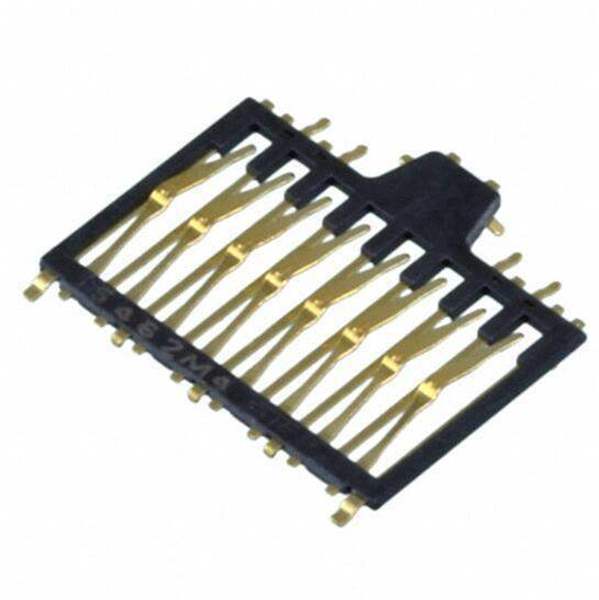

2286981-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2286981-1

Part No 2286981-1
Manufacturer TE Connectivity
Catalog Memory Connectors - PC Card Sockets
Description BLOCK SD CONNECTOR
Datasheet
2286981-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Memory Connectors PC Card Sockets
Package Tape & Reel (TR)
Product Status Obsolete
Card Type Secure Digital - microSD™
Connector Type Connector
Insertion, Removal Method Push In, Pull Out
Mounting Type Surface Mount, Right Angle
Height Above Board 0.012" (0.30mm)
Win Source Part Number WS1207066-2286981-1
Ultra Librarian 3D Model Ultra Librarian 2286981-1 CAD Model

Description

8 Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle
