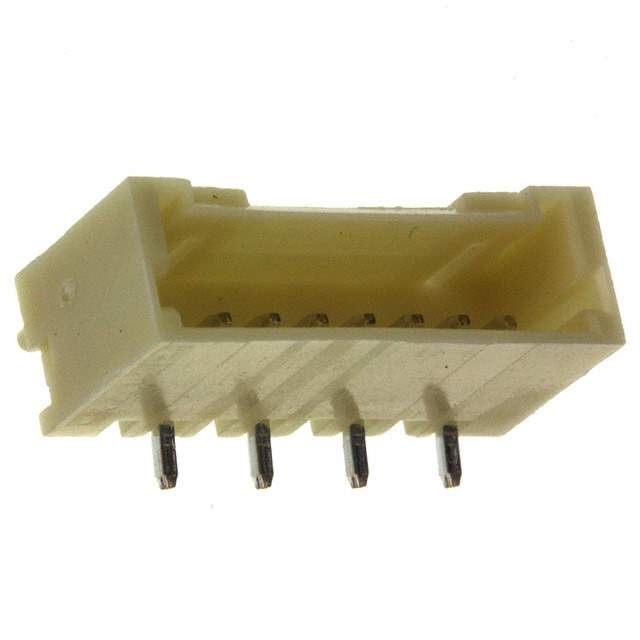

292230-8 Real Image1 292230-8 Real Image2
Same model may have multiple batches, images only for reference.
292230-8 Real Image1 292230-8 Real Image2
292230-8 Real Image1 292230-8 Real Image2
Same model may have multiple batches, images only for reference.

292230-8

Part No 292230-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 8POS 1.5MM / Connector Header Surface Mount 8 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr TE Connectivity
Series Mini CT
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 8
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.272" (6.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications General Purpose
Base Product Number 292230
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 20,000 pcs
Win Source Part Number 1380713-292230-8
Ultra Librarian 3D Model Ultra Librarian 292230-8 CAD Model

Description

The Mini CT Male Pin Header is a versatile connector designed for general-purpose applications.

  • Positions: 8
  • Pitch: 0.059" (1.50mm)
  • Fastening Type: Detent Lock
  • Termination: Solder
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (20,000 pcs)
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Voltage Rating: 50VAC
  • Flammability Rating: UL94 V-0
  • Connection Style: Board to Cable/Wire
  • Insulation Color: Beige
  • Shrouding: Shrouded - 4 Wall
  • Temperature Range: -30°C to 105°C
  • ECCN: EAR99
