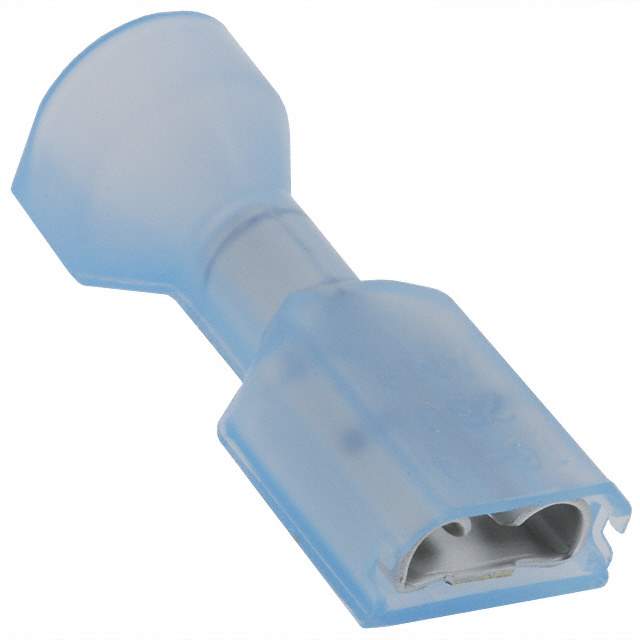

3-520141-2 Real Image
Same model may have multiple batches, images only for reference.

3-520141-2

Part No 3-520141-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.935" (23.75mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.260" (6.60mm)
Base Product Number 520141
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -2-42930-1181-SI,-2-42930-1181-SI-ND,35201412,A27828,3-520141-2-ND,-3-520141-2-SI
Standard Package 1,000
Win Source Part Number 1333549-3-520141-2
Ultra Librarian 3D Model Ultra Librarian 3-520141-2 CAD Model

Description

The 1333549-3-520141-2 is a fully insulated female connector from TE Connectivity AMP Connectors.

  • Standard Package: 1,000
  • Wire Gauge: 14-16 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Termination: Crimp
  • Packaging: Bulk
  • Color: Blue
  • Mounting: Free Hanging (In-Line)
  • Terminal Type: Standard
  • Insulation Diameter: 0.260" (6.60mm)
  • Tab Width: 0.250" (6.35mm)
  • Win Source Part Number: 1333549-3-520141-2
