Same model may have multiple batches, images only for reference.

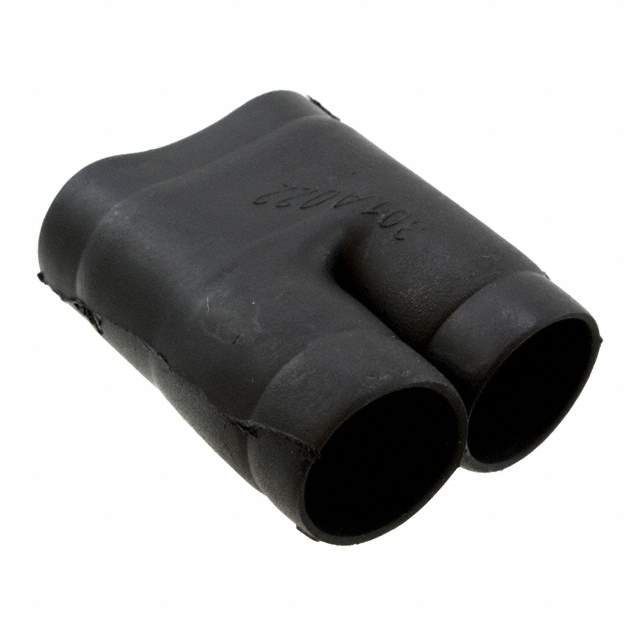

301A022-25-0 Real Image
Same model may have multiple batches, images only for reference.

301A022-25-0

Part No 301A022-25-0
Manufacturer TE Connectivity
Catalog Heat Shrink Boots, Caps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires - Management>Heat Shrink Boots, Caps
Mfr TE Connectivity Aerospace, Defense and Marine
Series Thermofit 301A0
Package Bulk
Shell Size - Insert 22
Features Abrasion Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant, Heat Resistant, Strain Resistant
Color Black
Material Elastomer, Semi-Rigid, Irradiated
Large Diameter Supplied 0.520" (13.21mm)
Large Diameter Recovered 0.272" (6.91mm)
Small Diameter Supplied 0.520" (13.21mm)
Small Diameter Recovered 0.272" (6.91mm)
Large Recovered Length 1.161" (29.49mm)
Small Recovered Length 1.161" (29.49mm)
Total Length Recovered 2.311" (58.70mm)
Base Product Number 301A022
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Win Source Part Number 1315128-301A022-25-0
Ultra Librarian 3D Model Ultra Librarian 301A022-25-0 CAD Model

Description

It is made of elastomer, semi-rigid, irradiated material and is black in color.

  • Material: Elastomer, Semi-Rigid, Irradiated
  • Color: Black
  • Features: Abrasion Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant, Heat Resistant, and Strain Resistant
  • Shell Size: 22
  • Large Diameter Supplied: 0.520" (13.21mm)
  • Large Diameter Recovered: 0.272" (6.91mm)
  • Small Diameter Supplied: 0.520" (13.21mm)
  • Small Diameter Recovered: 0.272" (6.91mm)
  • Large Recovered Length: 1.161" (29.49mm)
  • Small Recovered Length: 1.161" (29.49mm)
  • Total Length Recovered: 2.311" (58.70mm)
