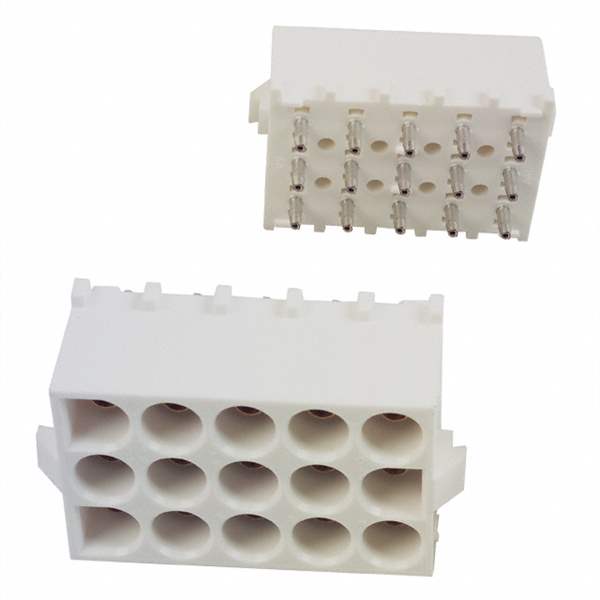

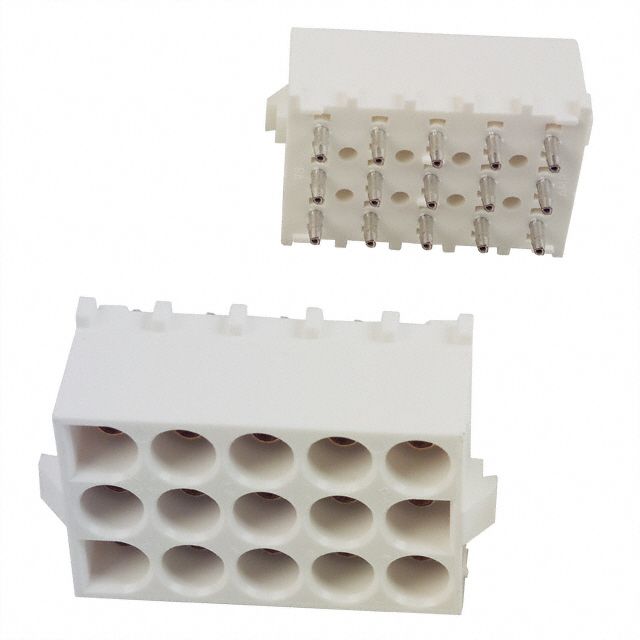

365046-1 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

365046-1

Part No 365046-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN HDR 9POS 0.24 TIN PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Header
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 9
Number of Positions Loaded All
Pitch - Mating 0.240" (6.10mm)
Number of Rows 3
Row Spacing - Mating 0.240" (6.10mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Insulation Color Natural
Insulation Height 0.571" (14.50mm)
Contact Length - Post 0.161" (4.09mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-2
Contact Finish - Post Tin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1632701-365046-1
Ultra Librarian 3D Model Ultra Librarian 365046-1 CAD Model

Description

N
