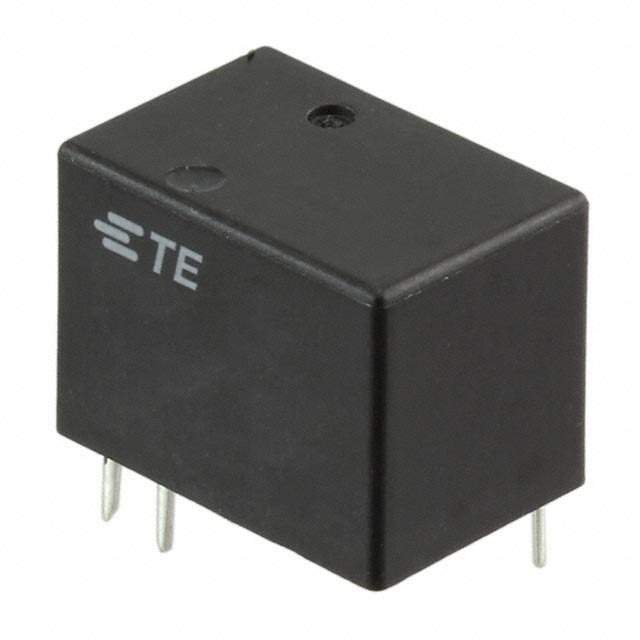

4-1419145-0 Real Image
Same model may have multiple batches, images only for reference.

4-1419145-0

Part No 4-1419145-0
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 5VDC 125Ohm 1A SPDT (15.4x10.4x11.2)mm THT Miniature Sealed Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 40 mA
Coil Resistance 125 Ω
Coil Voltage (DC) 5 V
Contact Current Rating 1 A
Contact Material Gold, Silver
Contact Plating Gold
Depth 10.4 mm
Length 15.4 mm
Maximum Operating Temperature 75 °C
Min Operating Temperature -30 °C
Mount Through Hole
Number of Pins 5
Operate Time 10 ms
RoHS Compliant
Termination PC Pin
Throw Configuration SPDT
Voltage Rating (AC) 120 V
Width 10.3886 mm
Win Source Part Number 1047266-4-1419145-0
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 4-1419145-0 CAD Model

Description

TE Connectivity Signal Relay is a PC Pin type relay that features a coil resistance of 125 Ω, a coil current of 40 mA, and a contact current rating of 1 A.

  • Relay Type: PC Pin
  • Coil Resistance: 125 Ω
  • Coil Current: 40 mA
  • Contact Current Rating: 1 A
  • Throw Configuration: SPDT
  • Voltage Rating (AC): 120 V
  • Maximum Operating Temperature: 75 °C
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -30 °C
  • Length: 15.4 mm
  • Width: 10.3886 mm
  • Depth: 10.4 mm
  • Mounting Type: Through-Hole
  • Suitable For: Power Supplies, Audio Equipment, Telecommunications Equipment
  • Series: TE Connectivity
  • Alternative Parts: Available for Cross-Reference
