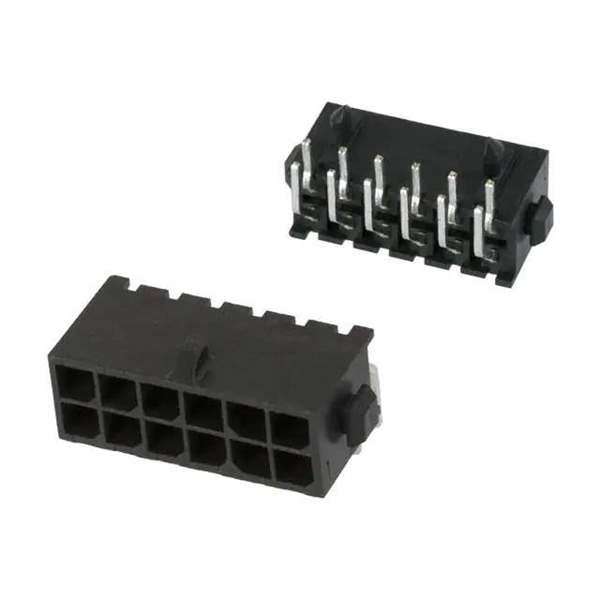

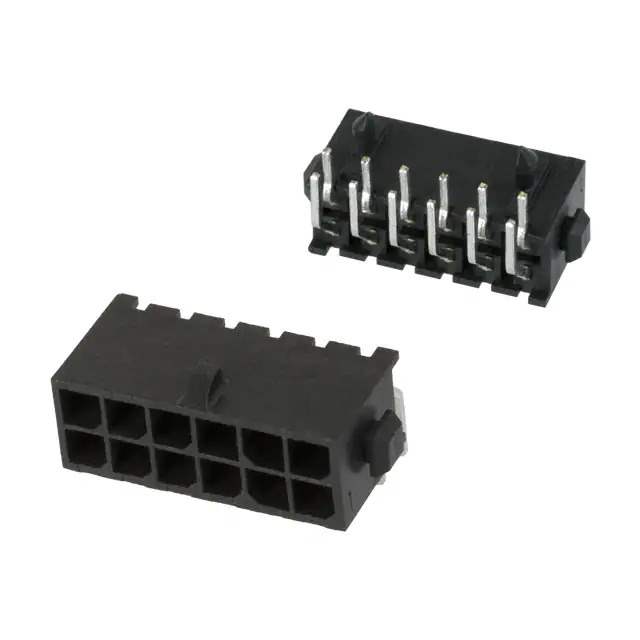

4-794618-2

Name: 4-794618-2
Brand: TE Connectivity
SKU: 856136
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	4-794618-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 12POS 3MM / Connector Header Through Hole, Right Angle 12 position 0.118" (3.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	Micro MATE-N-LOK
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.290" (7.37mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Lock
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250V
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose
Base Product Number	794618
Standard Package	169 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856136-4-794618-2
Ultra Librarian 3D Model	Ultra Librarian 4-794618-2 CAD Model

Alternative Products

Description

The TE Connectivity electronic component with Win Source Part Number 856136-4-794618-2 is a rectangular connector header with male pins.

Series: Micro MATE-N-LOK
Positions: 12
Board Lock: Yes
Connector Type: Male Pin
Positions Loaded: All
Mounting: Through-Hole, Right Angle
Design: Shrouded 4-Wall
Contact Material: Brass
Contact Finish: Tin
Voltage Rating: 250V
Temperature Range: -40°C to 105°C
Application: General Purpose
Current Rating: Varies based on wire gauge
Product Status: Active
Standard Package: 169 pieces
