Same model may have multiple batches, images only for reference.

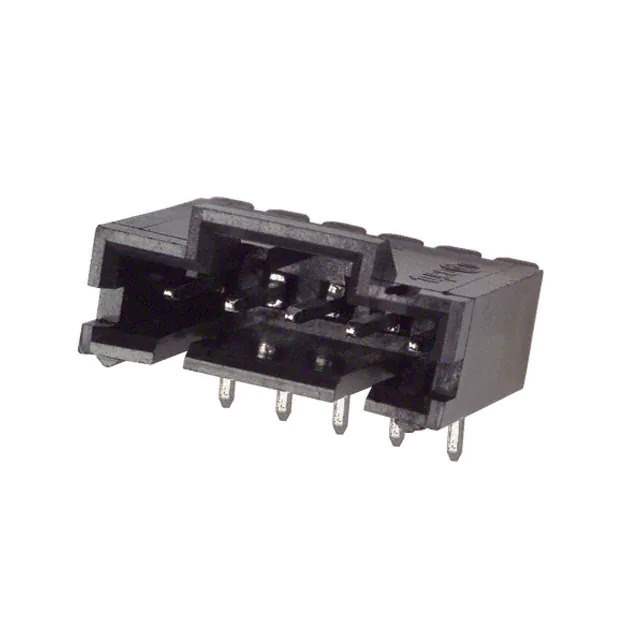

5-103634-4 Real Image
Same model may have multiple batches, images only for reference.

5-103634-4

Part No 5-103634-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 5POS 2.54MM / Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU MTE
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.200" (5.08mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103634
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856350-5-103634-4
Ultra Librarian 3D Model Ultra Librarian 5-103634-4 CAD Model

Description

The 856350-5-103634-4 is a male pin header connector from the AMPMODU MTE series.

  • Positions: 5
  • Feature: keying slot
  • Contact Type: male pin
  • Termination: solder
  • Mounting: through-hole, right-angle
  • Fastening Type: latch holder
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: tin
  • Operating Temperature Range: -65°C to 105°C
  • Manufacturer: TE Connectivity
