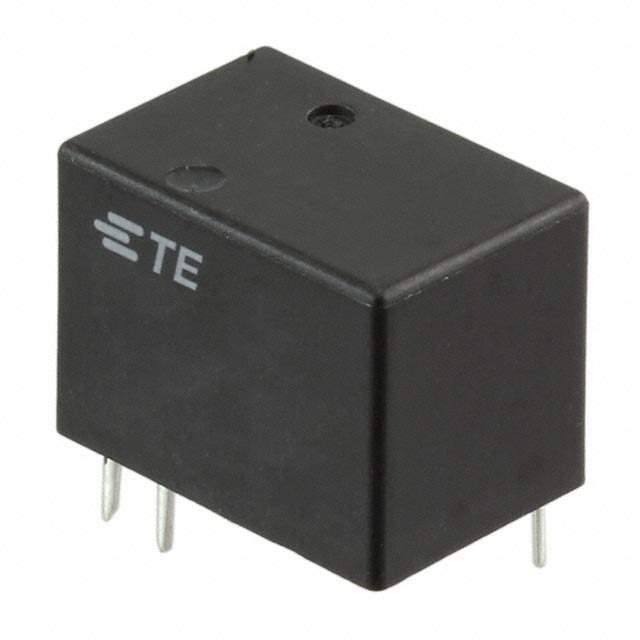

5-1419145-7 Real Image
Same model may have multiple batches, images only for reference.

5-1419145-7

Part No 5-1419145-7
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 12VDC 320Ohm 1A SPDT (15.4x10.4x11.2)mm THT Miniature Sealed Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 37.5 mA
Coil Power 450 mW
Coil Resistance 320 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 1 A
Contact Material Nickel
Contact Plating Gold
Contact Voltage Rating (DC) 24 V
ELV Compliant
Height 11.2014 mm
Insertion Loss (dB) -0.27 dB
Lead Free Yes
Length 15.3924 mm
Max Current Rating 1 A
Maximum Operating Temperature 60 °C
Max Voltage Rating (AC) 120 V
Max Voltage Rating (DC) 60 V
Min Operating Temperature -30 °C
Mount Through Hole
Number of Pins 5
Operate Time 5 ms
Power Consumption 450 mW
REACH SVHC Unknown
Relay Type Relay
Release Time 7 ms
RoHS Compliant
Termination PCB
Throw Configuration SPDT
Weight 3.501166 g
Width 10.4 mm
Win Source Part Number 1083395-5-1419145-7
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 5-1419145-7 CAD Model

Description

The 1083395-5-1419145-7 is a signal relay from TE Connectivity.

  • Popularity: low
  • Supply and Demand Status: shortage
  • Coil Voltage: 12V
  • Coil Resistance: 320Ω
  • Contact Current Rating: 1A
  • Contact Voltage Rating: 24V DC
  • Lead-Free: Yes
  • RoHS Compliant: Yes
