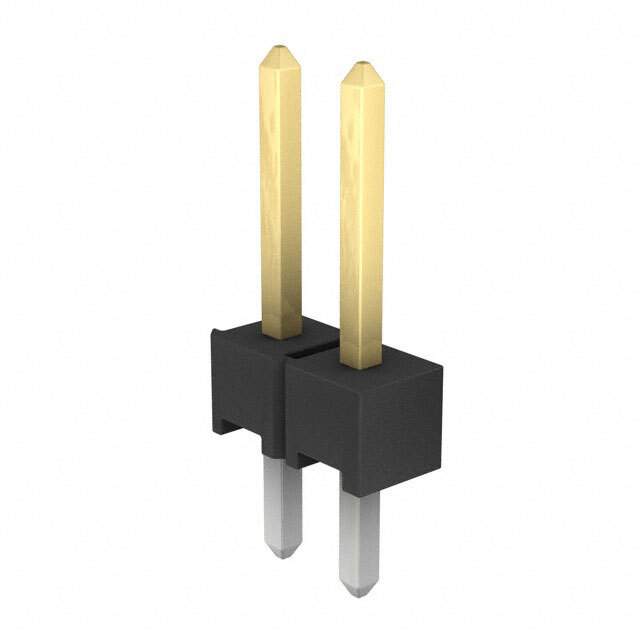

5-146285-2 Real Image
Same model may have multiple batches, images only for reference.

5-146285-2

Part No 5-146285-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.090" (2.29mm)
Overall Contact Length 0.410" (10.41mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 146285
Other Names 2266-5-146285-2,51462852
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293113-5-146285-2
Ultra Librarian 3D Model Ultra Librarian 5-146285-2 CAD Model

Description

The TE Connectivity AMP Connectors 146285-2 is a header connector that belongs to the rectangular connectors - headers, male pins category.

  • Connection: Board to board or cable
  • Pitch-Mating: 0.100" (2.54mm)
  • Current Rating: 3A
  • Applications: Various electronic applications, including automotive, industrial, and consumer electronics
  • Temperature Range: -65°C to 105°C
  • Reliability: Highly reliable
  • Package Type: Bulk
  • Standard Package: 500
