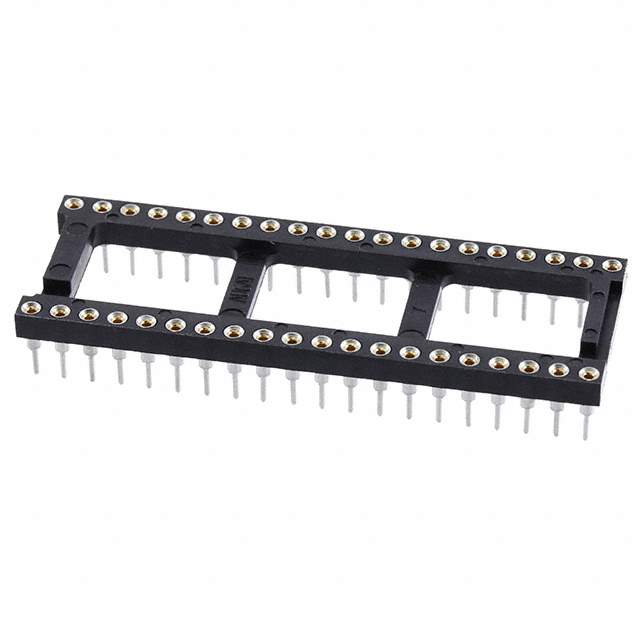

5-1571552-2 Real Image
Same model may have multiple batches, images only for reference.

5-1571552-2

Part No 5-1571552-2
Manufacturer TE Connectivity
Catalog Unclassified
Description CONN IC DIP SOCKET 40POS GOLD / 40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors>IC Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Product Status Obsolete
Type DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) 40 (2 x 20)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Material - Mating Copper Alloy
Mounting Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin-Lead
Contact Material - Post Copper Alloy
Housing Material Polyester
Temperature Range - Operating -55°C ~ 105°C
Termination Post Length 0.125" (3.18mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3 A
Contact Resistance 10mOhm
Base Product Number 1571552
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -840-AG11D-ES-LF-SI-ND,A113792,-5-1571552-2-SI,5-1571552-2-ND,2266-5-1571552-2,840-AG11D-ES-LF,-840-AG11D-ES-LF-SI
Standard Package 12
Win Source Part Number 1334093-5-1571552-2
Ultra Librarian 3D Model Ultra Librarian 5-1571552-2 CAD Model

Description

The TE Connectivity AMP Connectors electronic component is a high-quality product that is designed for sockets for ICs, transistors.

  • Application: Sockets for ICs, Transistors
  • Packaging: Tube
  • Standard Package: 12
  • Type: DIP, 0.6" (15.24mm) Row Spacing
  • Mounting: Through-Hole
  • Contact Finish: Gold
  • Contact Finish Thickness: 20.0µin (0.51µm)
  • Current Rating: 3A
  • Temperature Range: -55°C ~ 105°C
