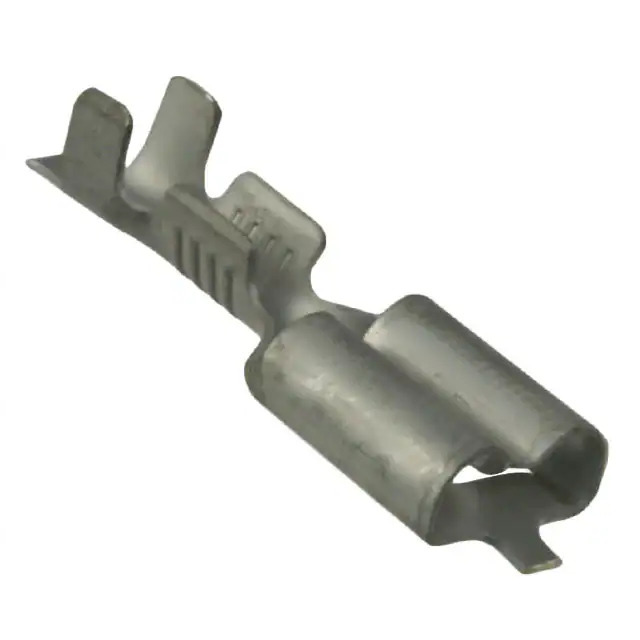

Same model may have multiple batches, images only for reference.

5-160526-9

Name: 5-160526-9
Brand: TE Connectivity
SKU: 1365072
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5-160526-9
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 15.5-20AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 15.5-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity AMP Connectors
Series	Fastin-Faston
Package	Tape & Reel (TR)
Product Status	Active
Terminal Type	Standard
Gender	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	0.305" (7.75mm)
Length - Overall	0.756" (19.20mm)
Termination	Crimp
Wire Gauge	15.5-20 AWG
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Features	-
Color	-
Contact Material	Phosphor Bronze
Contact Finish	Tin
Insulation Diameter	0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Base Product Number	160526
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1365072-5-160526-9
Ultra Librarian 3D Model	Ultra Librarian 5-160526-9 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors Fastin-Faston series offers quick connect and quick disconnect connectors.

Terminal Type: Female
Base Product Number: 160526
Wire Gauge: 15.5-20 AWG
Contact Finish: Tin
Insulation: Non-Insulated
Tab Width: 0.250" (6.35mm)
Tab Thickness: 0.032" (0.81mm)
Overall Length: 0.756" (19.20mm)
