Same model may have multiple batches, images only for reference.

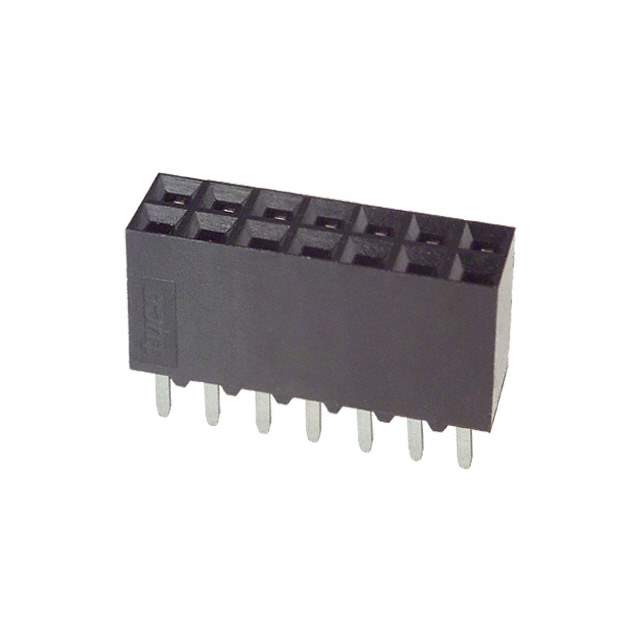

5-534206-7 Real Image
Same model may have multiple batches, images only for reference.

5-534206-7

Part No 5-534206-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 14POS 0.1 GOLD PCB / 14 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 14
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.320" (8.13mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2A
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 150.0µin (3.81µm)
Base Product Number 534206
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 55342067,2266-5-534206-7,A32938
Standard Package 32
Win Source Part Number 1332078-5-534206-7
Ultra Librarian 3D Model Ultra Librarian 5-534206-7 CAD Model

Description

The TE Connectivity AMP Connectors 1332078-5-534206-7 is a connector with a medium popularity.

  • Popularity: Medium
  • Supply and Demand: Balanced
  • Style: Board to Board or Cable
  • Positions: 14
  • Mounting Style: Through Hole
  • Contact Type: Female Socket
  • Contact Finish: Gold (Mating), Tin (Post)
  • Contact Finish Thickness: 30.0µin (0.76µm) (Mating), 150.0µin (3.81µm) (Post)
  • Insulation Color: Black
  • Contact Shape: Square
  • ECCN: EAR99
  • Current Rating: 2A
