Same model may have multiple batches, images only for reference.

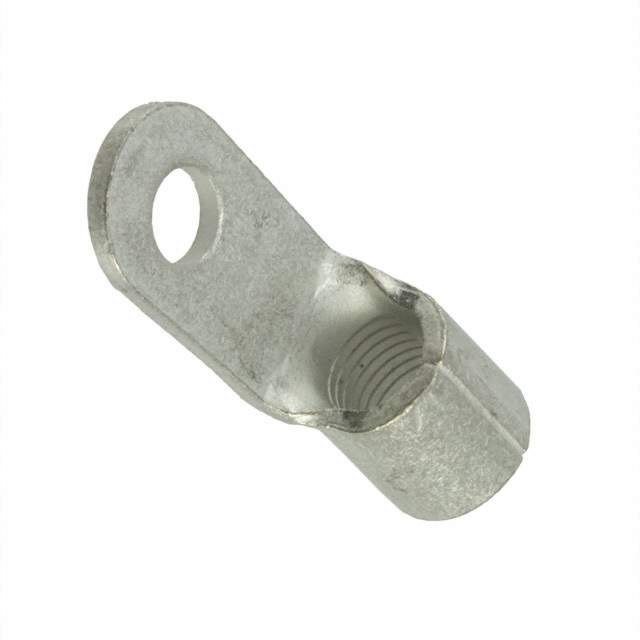

52197-1 Real Image
Same model may have multiple batches, images only for reference.

52197-1

Part No 52197-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 6AWG #10 CRIMP  /  Ring Terminal Connector 10 Stud Circular 6 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series Solistrand
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.057" (1.45mm)
Width - Outer Edges 0.406" (10.31mm)
Length - Overall 1.181" (30.00mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 6 AWG
Insulation Non-Insulated
Features Brazed Seam, Serrated Termination
Contact Material Copper
Contact Finish Tin
Base Product Number 52197
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A100650TR,52197-1-ND,521971,2266-52197-1TR,A100650CT
Standard Package 1,000
Win Source Part Number 991889-52197-1
Ultra Librarian 3D Model Ultra Librarian 52197-1 CAD Model

Description

The TE Connectivity Solistrand 52197-1 is a circular terminal designed for use in a range of applications.

  • Terminal Shape: Circular
  • Seam Type: Brazed
  • Termination Style: Serrated
  • Termination Type: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 6 AWG
  • Package: Tape & Reel / Cut Tape
  • Insulation Type: Non-Insulated
  • Stud/Tab Size: 10 Stud
  • Manufacturer: TE Connectivity AMP Connectors
  • Standard Package: 1,000
