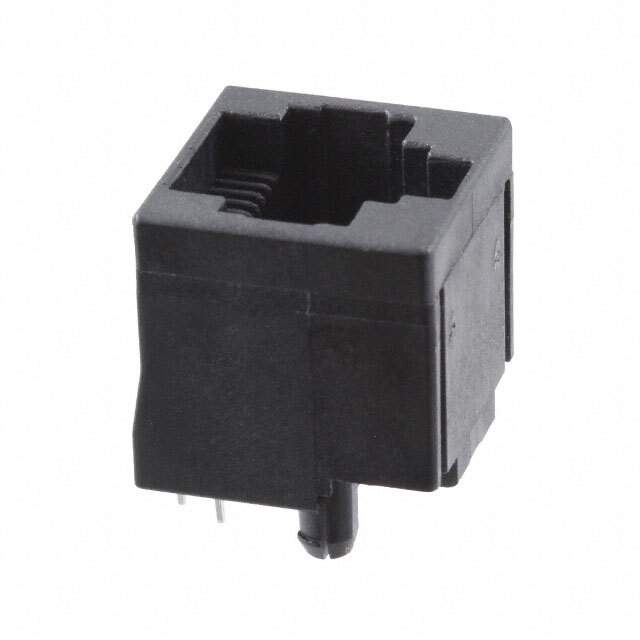

5556416-1 Real Image
Same model may have multiple batches, images only for reference.

5556416-1

Part No 5556416-1
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C VERT UNSHLD
Datasheet
5556416-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Style Through Hole
Orientation Vertical
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock
LED Color Does Not Contain LED
Tab Direction User Selectable
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Housing Material Polybutylene Terephthalate (PBT), Polyester
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 764030-5556416-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5556416-1 CAD Model

Description

{"ProductId":702408,"FormattedDescription":"

The TE Connectivity AMP Connectors 5556416-1 is a through-hole jack connector with a contact finish of gold and a contact finish thickness of 50μin (1.27μm).

  • Positions/Contacts: 8p8c (RJ45, Ethernet)
  • Mounting: Tray
  • Housing Material: Polybutylene Terephthalate (PBT), Polyester
  • Ratings: Cat3
  • Rows: 1
  • Shielding: Unshielded
  • Applications: Connectors and Interconnects
"}
