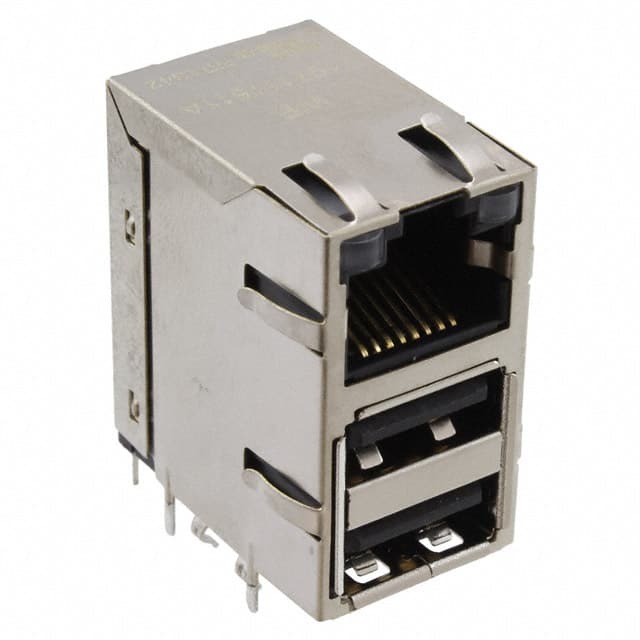

7497111611A
Same model may have multiple batches, images only for reference.

7497111611A

Part No 7497111611A
Manufacturer Wurth Electronics Inc
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB
Datasheet
7497111611A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Wurth Electronics Inc
Series WE-RJ45 LAN
Package Tube
Product Status Active
Connector Type RJ45 with USB A, Dual
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 1.168" (29.67mm)
LED Color Green, Orange - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material Tin
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
Standard Package 29 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847127-7497111611A
Ultra Librarian 3D Model Ultra Librarian 7497111611A CAD Model

Description

The WE-RJ45 LAN series from Wurth Electronics Inc offers a high-quality solution for modular connector jacks with magnetics.

  • Features: Board Lock
  • Connector Type: RJ45 with USB A, Dual
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Housing Material: Thermoplastic
  • Shielding: Yes with EMI Finger
  • Operating Temperature: 0°C ~ 70°C
  • Applications: 10/100/1000 Base-T, AutoMDIX
  • Standard Package: 29
  • LED Color: Green, Orange-Yellow
