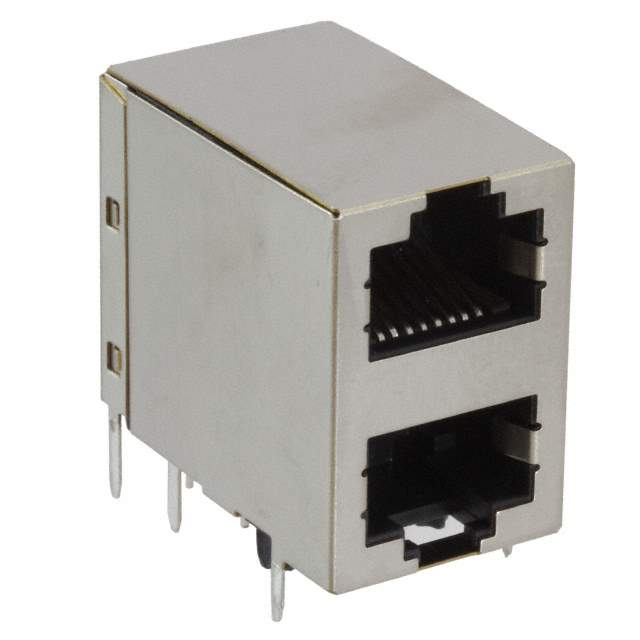

5569380-1 Real Image
Same model may have multiple batches, images only for reference.

5569380-1

Part No 5569380-1
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 22 Weeks
Features Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5
Manufacturer TE Connectivity
Package Tray
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Family Name 5569380
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-5569380-1, -5569380-1-SI, A115465, 5569380-1-ND
Quantity per package 45
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907465-5569380-1
Ultra Librarian 3D Model Ultra Librarian 5569380-1 CAD Model

Description

The TE Connectivity 907465-5569380-1 is a jack modular connector with 8p8c (RJ45, Ethernet) 90° angle (right) shielded Cat5 features.

  • Operating temperature range: -40°C ~ 85°C
  • Manufacturer: TE Connectivity
  • MSL level: 1 (unlimited)
  • Estimated production lead time: 22 weeks
