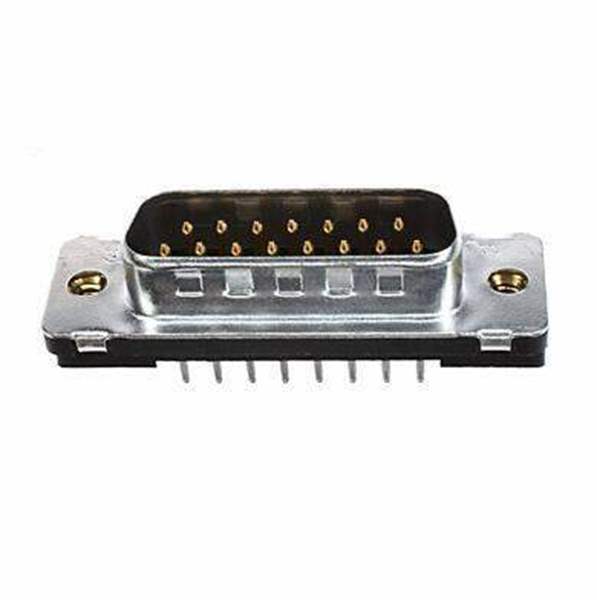

5747872-8 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5747872-8

Part No 5747872-8
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 15POS VERT SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Product Status Active
Connector Type Plug, Male Pins
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Features Grounding Indents
Win Source Part Number WS1209545-5747872-8
Ultra Librarian 3D Model Ultra Librarian 5747872-8 CAD Model

Description

15 Position D-Sub Plug, Male Pins Connector
