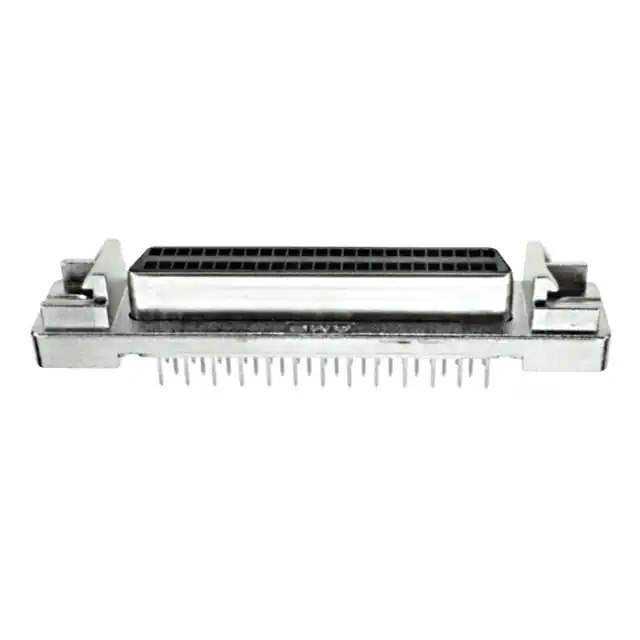

5749069-5 Real Image
Same model may have multiple batches, images only for reference.

5749069-5

Part No 5749069-5
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-TYPE RCPT 50POS VERT SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity
Series AMPLIMITE .050 III
Package Tube
Product Status Active
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (2-56); Latchblocks, Rails
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Features Shielded
Voltage Rating 30V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5749069
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847670-5749069-5
Ultra Librarian 3D Model Ultra Librarian 5749069-5 CAD Model

Description

The AMPLIMITE .050 III D-Sub Connector Assemblies are high-quality connectors designed for various electronic applications.

  • Series: AMPLIMITE .050 III
  • Connector Style: D-Type
  • Number of Positions: 50
  • Number of Rows: 2
  • Gender: Female Sockets
  • Termination: Solder
  • Contact Finish: Gold
  • Shielding: Yes
  • Voltage Rating: 30V
  • Temperature Range: -55°C to 105°C
  • Manufacturer: TE Connectivity
